The D-Link Quick Router Setup Wizard quickly configures your new Wireless N Router to get you up and running in minutes.
This Wireless N Router uses draft 802.11n technology with multiple external antennas to maximize the speed
Supports the latest wireless security features to help prevent unauthorized access
Setup Wizard walks you step by step through the installation process to configure your Internet connection
Create a wireless network to share high-speed Internet access with computers, game consoles
General
Type:
Wireless Without Modem
Model:
DIR-615
Part Number:
DIR-615
Controls:
Reset Button
In The Box:
1 Router
LED Indicator:
Internet, Power
Supported Software:
Microsoft Internet Explorer 6, Firefox 1.5 or Other Java-enabled Browser
Brand:
D-Link
Compatible ISP:
Hathway,ACT,Sify,Airtel ,You,Spectranet
Operating Conditions
Operating Humidity:
Operating: 10 % – 90 % Non-condensing, Storage: 5 % – 95 % Non-condensing
Temperature:
Operating: 0DegC – 40DegC, Storage: -20DegC – 65DegC degree C
Power
Power Supply:
Input: AC 100 – 240 V, 50-60 Hz
Power Consumption:
12 W
System Requirements
Operating System:
Vista, Windows: 7, XP SP3 or Mac OS X 10.4
Supported Protocols
Standard IEEE:
IEEE 802.3x, IEEE 802.11n, IEEE 802.3u, IEEE 802.11g, IEEE 802.3, IEEE 802.11b
Network Features
Frequency:
2.4 GHz
Frequency Band:
Single Band
Speed
Wireless Speed:
300 Mbps
LAN/WAN:
10/100
Connectivity:
Antennae:
External
Number of LAN ports :
4
Number of WAN ports:
1
Number of USB Ports:
0
Number of Antennae:
2
Antennae Capacity:
5 dBi External Antenna
Security
Other Security Features:
UPnP
Firewall:
Network Address Translation (NAT)
Additional Features
Other Features:
Network Interface Card, Web Setup Wizard, Repeater Mode, Cable or DSL Modem, Input Power: 0.5 A
Certification:
CE, FCC, Wi-Fi Certified

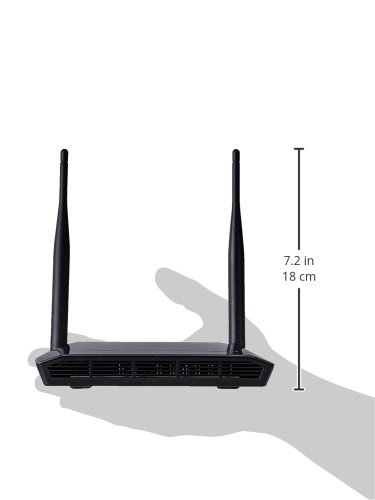

Dimensions
Height:
31 mm
Width:
150 mm
Depth:
175 mm
Weight:
249 g
