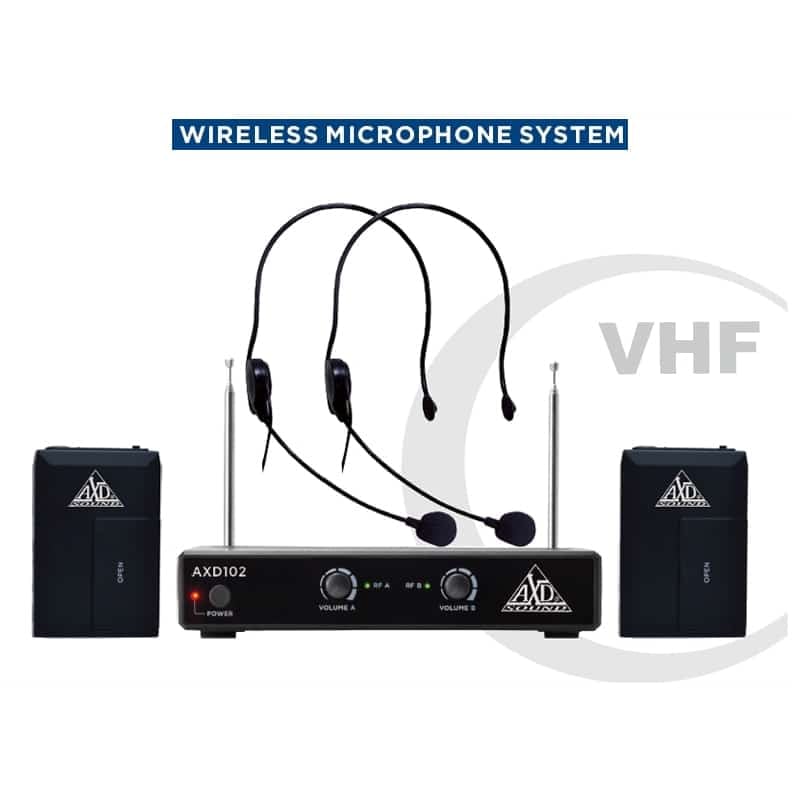

Features
– Superior quality dual channels VHF receiver
– 2 Reliable frequencies 186.6 and 204.6MHz
– Two individual volume rotary controls for optimum output level adjustment
– Super bright RF LED indicators for monitoring signal strength
– 1/4″ unbalanced output jack
– Rugged bel pack transmitter
– Light weight headset microphones for hands free operation
– More than 30M operating range

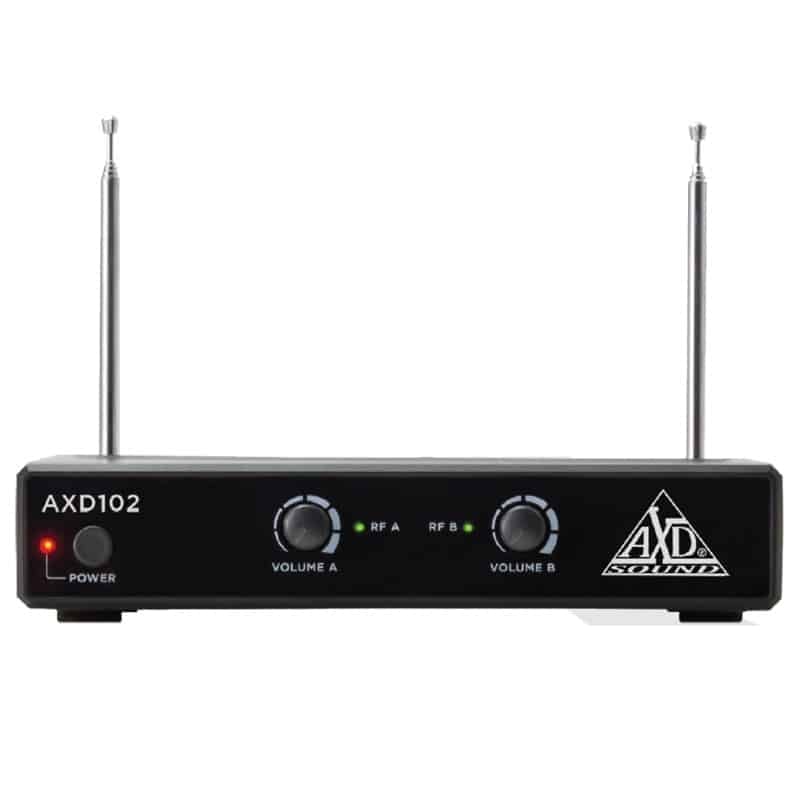

Receiver
- Frequencies: 186.6MHz, and 204.6MHz
- Frequency stability: 10PPM
- Sensitivity: -92dBm
- Frequency response: 80Hz~15KHz at +/-3dB
- Audio Output Level: 150mV(RMS)
- S/N: >90dB
- THD: <0.5%
- Power supply: DC 9V 200mA
- Consumption: 150mA
Transmitter
- Frequencies: 186.6MHz, and 204.6MHz
- Frequency Stability: 10ppm
- RF Output: <10mW
- Configuration: FM
- Maximum Deviation: ±75KHz
- Harmonic Suppression: >65dB
- Power supply: 3V (2xAA batteries)
- Consumption: 100mA
