Mount Types
Wall bracket
Power Supply
DC 12V 2.0A
Performance
Motion detection, Night Vision
Memory
TF Card, up to 64GB (not included)
Interface
Audio input, RJ45, TF card slot, Audio output
Function
PTZ
Privacy Masking Range
Support 4 Rectangle Areas
Shape
Dome
Wireless
WiFi 802.11 b/g/n
WIFI Encryption
WAP2-PSK, WEP 64/128
Protocol
DDNS, NTP, HTTPS, UDP, IGMP, SMTP, ICMP, UPNP, TCP, DHCP, FTP, DNS, ARP, RTCP, TCP/IP
Network Interface
RJ45 10/100MB Ethernet interface
Signal System
PAL, NTSC
Sensor
1/4 inch 0130
Processor
HS 3518
Lens
2.8-12mm, 89.9 Degree View Angle -26.2 Degree View Angle
Lens Focusing
4X ZOOM Auto Focus Lens
Pan/Tilt-Horizontal Angle
355 degrees
Pan/Tilt-Vertical Angle
90 degree
Minimum Illumination
0.1LUX, 0Lux(IR on)
Image Control
Hue, Saturation, Brightness, Contrast, Exposure
Mobile Access
Android, iPhone OS
Audio Compression Format
G.726, G.711
Frame Rate (FPS)
20fps
Video Compression Format
H.264
Configuration
22 infrared LEDs
Infrared Distance
30m
Environment Outdoor, Indoor
1. H.264 960P 1/4 inch 0130 sensor 2.8-12mm 4x Zoom auto focus IR-CUT waterproof WiFi camera.

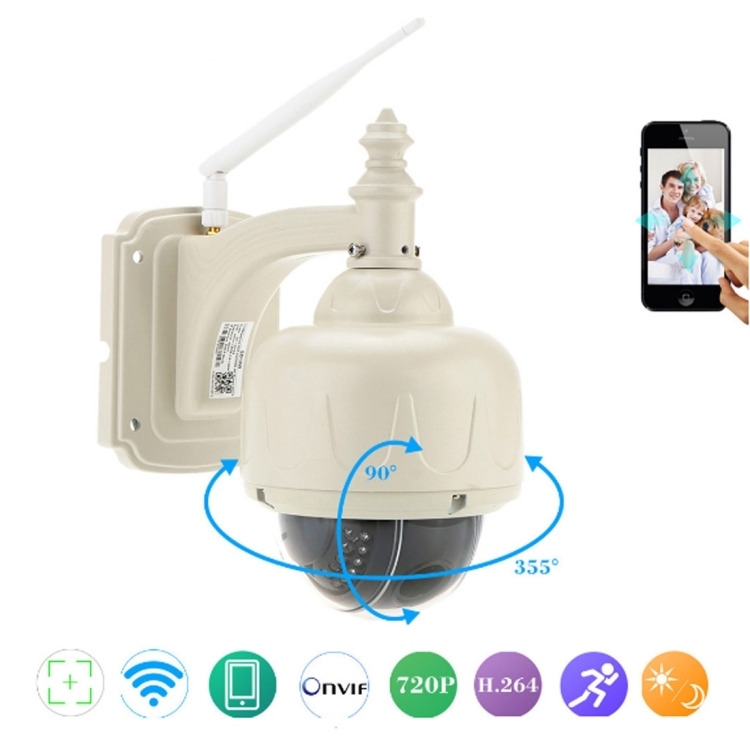

2. Pan tilt rotation: Horizontal: 355 degrees & Vertical: 90 degrees.
3. Support TF card up to 64GB (not included).
4. Motion detection and email alarm.
5. Provide android & iOS APP and multi-channel CMS PC client software.
6. Elegant outline and easy installation.
7. Support QR code login.
8. Operating system Embedded Linux.
7. First Stream: 960P(1280*960), 720P (1280*720) / HPEG stream (Monitoring for mobile phones): Q720P(640*352), QQ720P (320*176).
8. Video code rate: 32-6144Kbps, support constant bitrate / variable bitrate.
9. Motion detection: Can set 4 independent detection region (1-100 sensitivity can be set).
10. Alarm linkage: Alarm send pictures to the specified mailbox; Alarm upload pictures to the FTP serve and recode on Micro SD card.
11. Simultaneous Viewers: Max Support 12 users.
12. Network Protocol: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP.
13. Connection Protocol: Support onvif 2.4.
