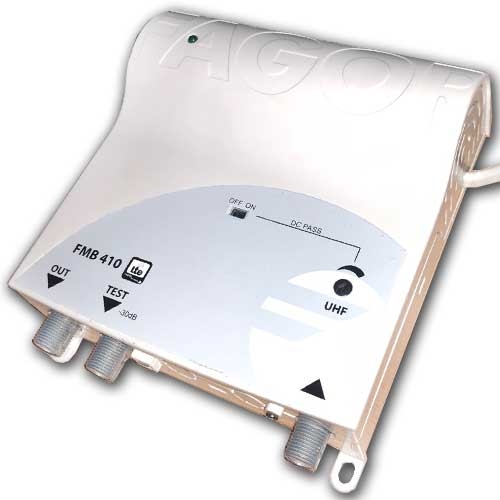

MODEL: FMB410
Reference: 35372
Nbr. of inputs: 1
Band: UHF (470-790MHz)
Gain: 38 dB
Regulation: 15 dB
Noise figure: 3 dB
Power for preamplifier: 24V DC; 45mA (Switchable)
Output level: 114 dBµV *
Output test: -30 dB
Consumption: 80W
Power: 195-265 VAC
Operating Temperature: 0-50
* DIN 45004B (-60dB)
Amplifiers designed for the distribution of TV signals up to 862 MHz or 790 MHz. APLICATION Suitable for headend amplification of the signal coming from multiple antennas in individual or community installations, medium or small sized.
CHARACTERISTIQUES:
■ Modern design and small size, making it easier to install.
■ Amplification and independent regulation per input.
■ High performance switching power supply, which provides a high output current with less consumption, and guarantees a long life product.
■ Various models with DC pass.
■ LED power indicator.
Power supply 230 Vac -15% +10%
Working temperature 0 ÷ 50º C
Packing dimensions 150 x 130 x 50 mm
Weight 0,34 Kg
