| Product Category: | Full motion TV Wall Mount |
| Mounting Hole Pattern: | VESA & Universal |
| Material: | Steel |
| Pipe Size: | 30x20x1.5mm Square Steel Tube (1.2″x0.79″x0.059″ Square Steel Tube) |
| Metal Sheet Thickness: | Wall Plate THK=2mm cold-rolled sheet,VESA Panel THK=1.8mm cold-rolled sheet,Bracket Arm THK=1.5mm cold-rolled sheet (Wall Plate THK=0.079″ cold-rolled sheet,VESA Panel THK=0.071″ cold-rolled sheet,Bracket Arm THK=0.059″ cold-rolled sheet) |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |
| Dimensions: | 468x655x420mm (18.4″x25.8″x16.5″) |
| Suggested Screen Size: | 37″-80″ |
| Installation: | Solid wall, Double Stud(406mm/450mm) |
| Rated Load: | 40kg (88lbs) |
| Strength tested: | 2 times approved |
| Max. VESA: | 600×400 |
| VESA Compatible: | 75×75,100×100,100×150,100×200,150×100,150×150,200×100,200×200,300×200,300×300,400×200,400×300,400×400,600×400 |
| Tilt Range: | ＋5°～-15° |
| Swivel: | +60°~-60° |
| Profile: | 62~468mm (2.4″~18.4″) |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| Screen Level: | +3°~-3° |
| Screen Freely Tilting: | No |
| Rank: | Economy |
| Fit Curved TV: | Yes |
| Cable Management: | Yes |
| Direction Indicator: | Yes |

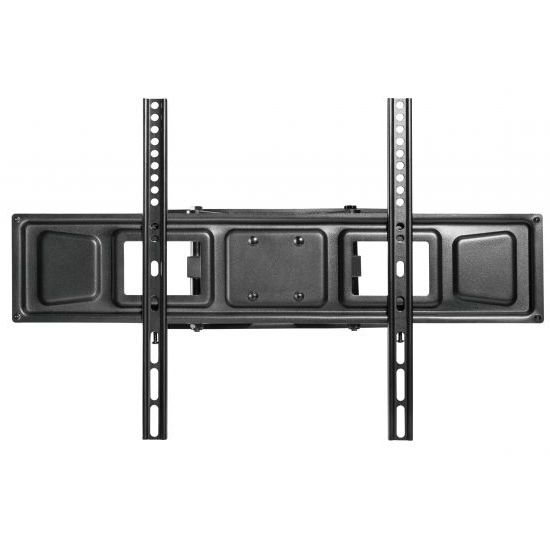

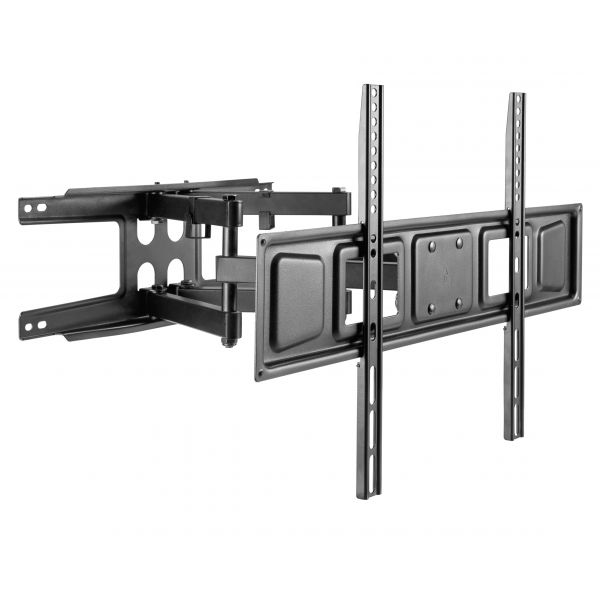

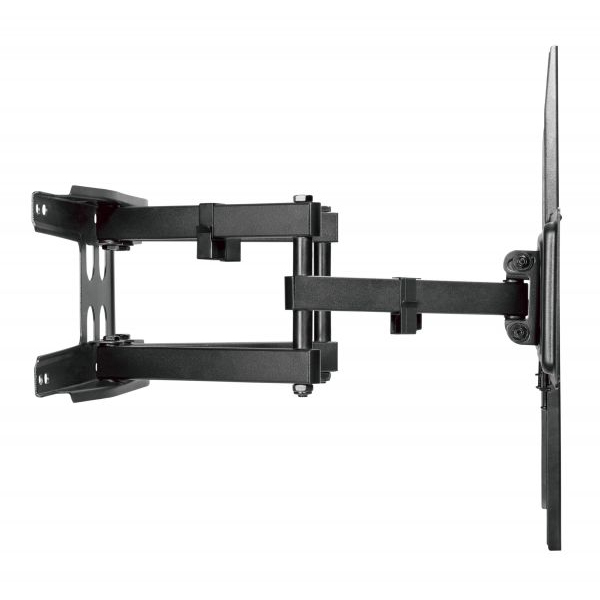

TV Wall Mount Bracket ATC-3780 37″- 80″
Out of stock
Out of stock
Additional information
| Weight | 5,7500 kg |
|---|---|
| Dimensions | 0,070 × 0,6800 × 0,235 cm |
