Standards: IEEE 802.3 / IEEE 802.3u / HomePlug AV
Powerline Interface: Power plug (country-dependent)
Ethernet Interface: 10/100BASE-TX Ethernet Port with Auto
MDI/ MDIX: RJ-45 Connector
Power Socket Interface: Type F Electrical Outlet, 250 V/16 A / Maximum
Powerline Modulation Scheme: OFDM Symbol Modulation
Powerline Frequency Band: 2 MHz to 30 MHz
Data Rate: Powerline: 200 Mbps (PHY rate) Ethernet: 10/100 Mbps (autonegotiation)
Security: 128-bit AES Data Encryption
Minimum System Requirements (For PC Utility Software): PC with 200 MHz processor / 64 MB memory / Windows 7, Vista, XP SP2 or 2000 SP4 / Ethernet interface (100 Mbps)
LEDs: Power / Powerline / Ethernet
Power Input: 240 V AC, 50/60 Hz
Power Saving: Power saving mode supported / Compliant with European Energy Using / Product Directive
Dimensions (L x W x H): 140 x 69 x 42 mm
Weight: 190 g
Operating Temperature: 0º to 40º C (30º to 104º F)
Operating Humidity: 10% to 95% non-condensing

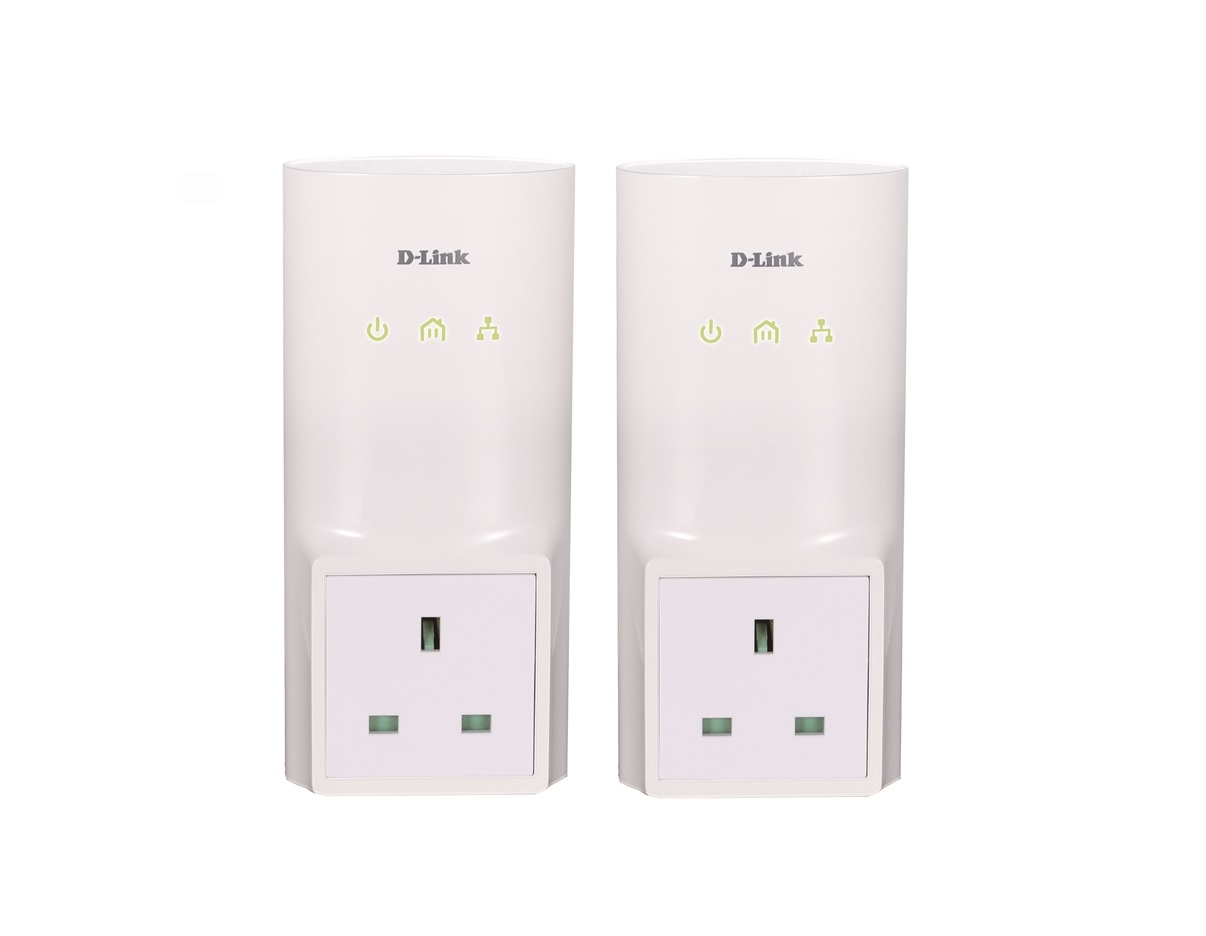

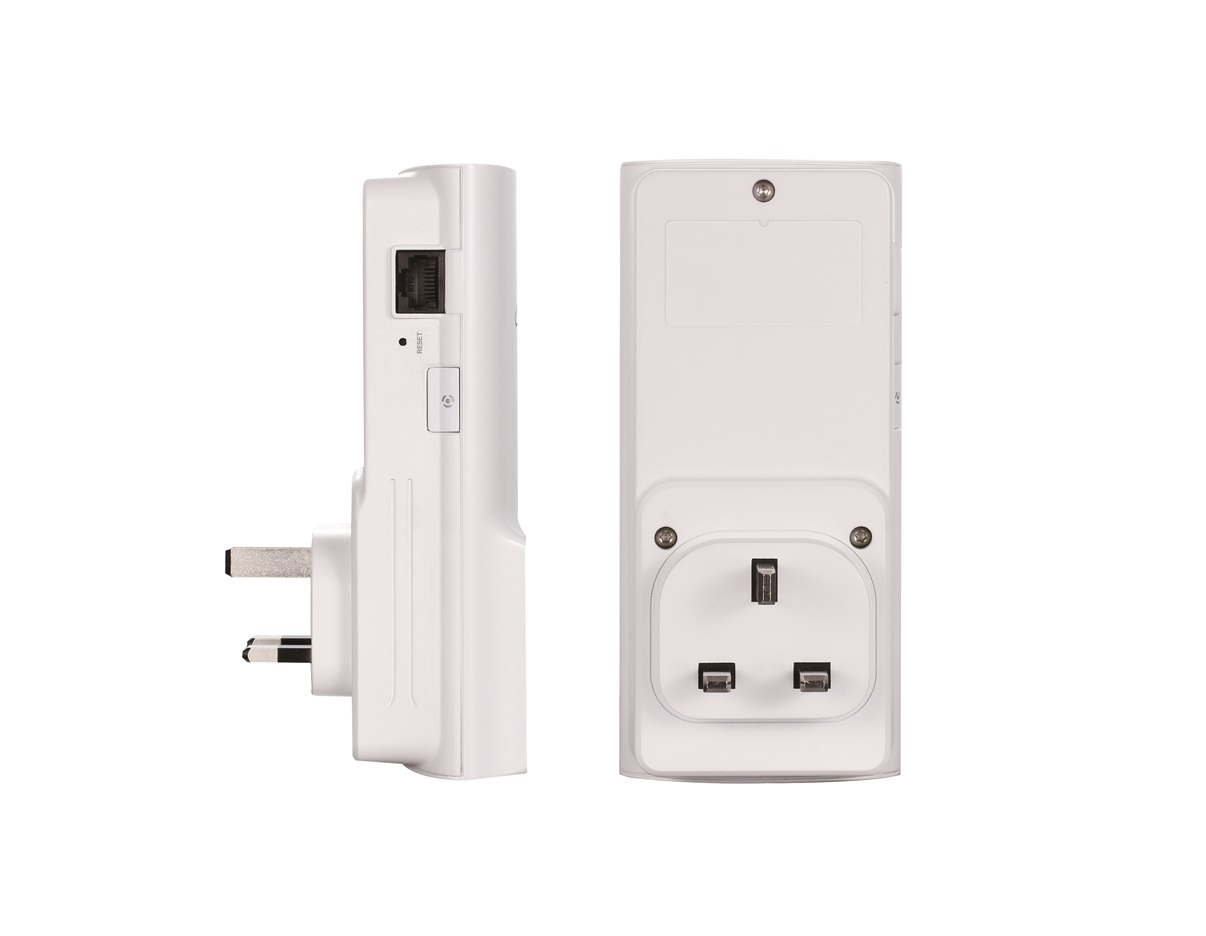

The D-Link DHP-P307AV kit consists of two PowerLine Homeplug AV passthrough adapters used to distribute Ethernet over standard AC wiring within the home. Each adapter has an electrical socket built in, so you don’t need to worry about running out of sockets!
