Features ● Display 4000 counts ● Auto Ranging ● Auto Power Off ● Diode Open Voltage 1.5V ● Continuity Buzzer <50±20Ω ● Data Hold ● Low Battery Display
● Power Supply : 2×1.5V 357A(LR44) Batteries
● Product Size : 120mmx70mmx18mm/4.7″x2.75″x0.7″
● Product Weight : 110g/0.23lb
● Certificate : CE / ETL / RoHS
● Safety Rating : CATIII 300V / CATII 600V
|
Specifications |
Range |
Resolution |
Accuracy |
| DC Voltage | 400mV/4V/40V/400V
600V |
0.1mV/1mV/10mV/100mV
1V |
±(0.5%+3)
±(0.8%+3) |
| AC Voltage | 4V/40V/400V
600V |
1mV/10mV/100mV
1V |
±(0.8%+4)
±(1.0%+4) |
| DC Current | 40mA/400mA | 0.1mA/1mA/10mA | ±(2.0%+3) |
| AC Current | 40mA/400mA | 0.1mA/1mA/10mA | ±(3.0%+4) |
| Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ
40MΩ |
0.1Ω/1Ω/10Ω/0.1kΩ/1kΩ
10kΩ |
±(1.0%+3)
±(2.0%+4) |
| Capacitance | 4nF
40nF 400nF/4uF/40uF/100uF |
1pF
10pF 0.1nF/1nF/10nF/0.1μF |
±(5.0%+10)
±(4.0%+5) ±(3.0%+3) |

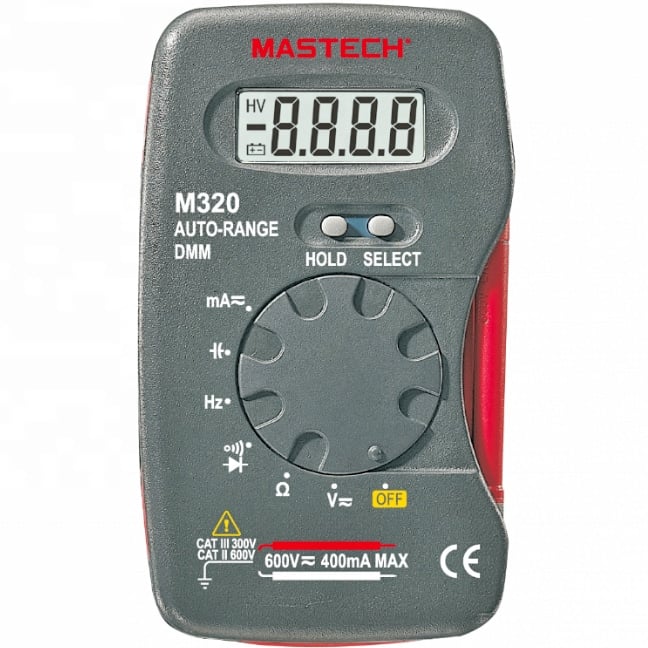

| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz | 0.01Hz/0.1Hz/1Hz/10Hz/0.1kHz | ±(0.5%+3)POCKET DIGITAL MULTIMETER M320 MASTECH MGL |
