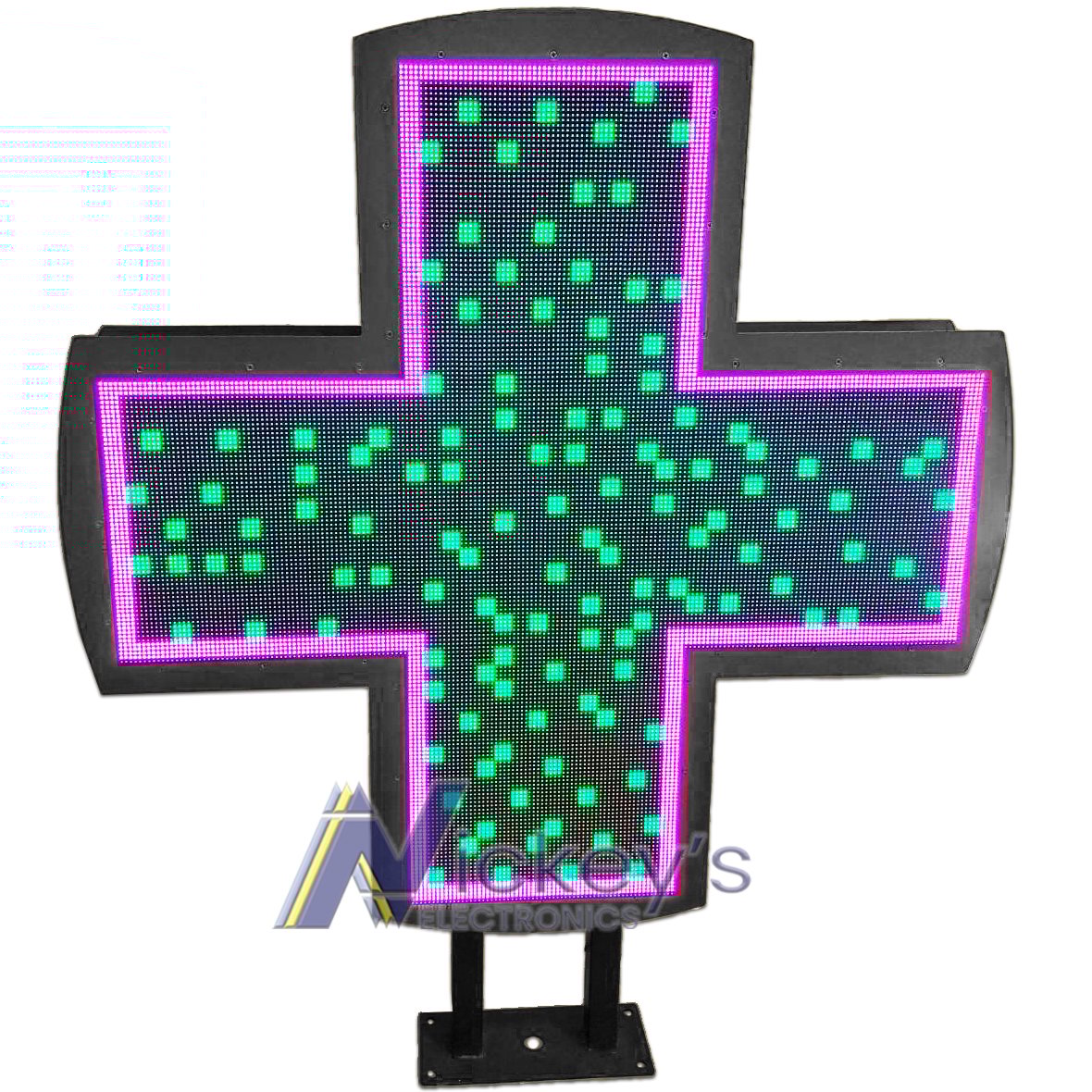

P10 Outdoor Full-Color LED Cross 960×960 mm (Antistatic Paint) with Wi-Fi LED Cross Control
Elevate your outdoor signage with the P10 Outdoor LED Cross—a robust, high-brightness LED Cross display optimized for clear visibility at ≥10 m. Featuring a 10 mm pixel pitch, antistatic powder coating, and seamless Wi-Fi receiving-card control, it’s perfect for churches, retail facades, and public messaging.
Key Features
- High-Brightness LED Cross Display≥2500 cd/m² white balance brightness ensures legible, vibrant images, even in direct sunlight.
- Durable, Weather-Resistant DesignIron cabinet with aluminum composite panels, IP44 front rating, and antistatic paint withstand outdoor elements.
- Advanced Wi-Fi LED Cross Control SystemSeamless content updates via Windows PC (XP/7/8/10) over Wi-Fi—no cabling hassles.
- Long-Lasting LED Cross Performance≥100 000 hours lifespan; MTBF >10 000 hrs; 3-year manufacturer warranty.
- Optimized ViewingWide 140° (H) × 140° (V) viewing angles; optimal distance ≥10 m
Technical Specifications
| Specification | Details |
| Screen Size (W × H) | 0.96 m × 0.96 m (0.9216 m² per side) |
| Pixel Pitch | 10 mm |
| Pixel Density | 10 000 dots/m² |
| Module Size | 320 × 160 mm |
| Module Resolution | 32 × 16 pixels (512 px) |
| Scan Method | 1/4 Scan |
| Module Power (Max/Avg) | 25 W / 15 W |
| Cabinet Dimensions (W × H × D) | 1075 × 1075 × 100 mm |
| Cabinet Resolution | 512 × 512 pixels per side |
| Cabinet Weight | 25 kg |
| Signal & Control | Wi-Fi receiving card (LED Cross) |
| Operating Voltage | AC 220 V ± 10%, 50 Hz ± 5% |
| Power Consumption | Peak: 450 W/m²; Avg: 250 W/m² |
| Earth Leakage | < 3.5 mA/m² (rms) |
| Operating Temp. / Humidity | –25 °C to 65 °C / < 95% RH, non-condensing |
| IP Rating | Front: IP44 |
| Lifespan & Reliability | 3 years |
Why Choose the P10 Full Color Outdoor LED Cross?
- Eye-Catching LED Cross Visibility: The P10 LED cross delivers crisp, bright imagery that captures attention day or night.
- Easy LED Cross Maintenance: Lightweight modules (0.55 kg) facilitate quick swaps; iron/aluminum cabinet shields electronics.
- Cost-Effective LED Cross Solution: Low average power draw (15 W/module) and durable build reduce operational costs over time.
Ready to Upgrade Your Outdoor LED Cross Display?
Enhance your venue’s visibility with the P10 Full Color Outdoor LED Cross 960×960 mm.
Order now or contact our sales team for a custom quote and seamless installation
