Type: ON-OFF DPST
Cap: <font color=red>red</font>
Remark: with red neon light
Contact rating: 10A/250Vac, 16A/125Vac
Electrical life: 20000 cycles
Mechanical life: 50000 cycles
Contact resistance: 50mohm
Insulation resistance: min. 100Mohm at 500Vdc
Dielectric strength: 1500Vac / 1 minute
Materials:
Housing: 66 nylon (UL94V-2)
Actuator: 66 nylon (UL94V-2)
Movable contacts: copper, silver-plated
Stationary contacts: copper, silver-plated
Terminals: copper, silver-plated
Contact: spring-loaded
Diode 1A / 1000 Volt
€0,35 inc. VAT
Crimping plier for BNC, TNC, SMA and N-connector
€25,00 inc. VAT

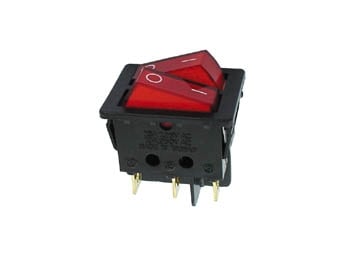

Illuminated Rocker Switch, DPST 10A – 250V
€3,80 inc. VAT
In stock
Additional information
| Weight | 0,0300 kg |
|---|---|
| Dimensions | 0,0300 × 0,0200 × 0,0300 cm |
