Input
Analog: 8*1080N Analog+Network: 6*Analog(1080N)+2*network(Max 2MP),4*Analog(1080N)+4*network(Max 2MP),2*Analog(1080N)+6*network(Max 2MP) Network: 16*1080P/960P/720P(Total incoming bandwidth ≤50M)
Input
8CH BNC
Signal Type
Analog/AHD/CVI/TVI 2.0/Network
Output
1HDMI,1 VGA, 1CVBS
Audio
Input
4 Channel, RCA
Two-way Audio
NO
Output
1 Channel, RCA
Alarm
Sensor Input
NO
Output
NO
Motion Detection
8 Channel(max 16 Channel in pure network mode)
Trigger Events
Recording, Email, Screen tips, Buzzer
Email Alarm
Send Image to The Designated E-mail
PTZ
Interface
RS485
Protocol
Pelco-D, Pelco-P
Baud Rate
110~921600
Address
0~255
Display
VGA
resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz
HDMI
resolution:1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz
Display Split
16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
Privacy Masking
1 Rectangular Zones (Each camera)
OSD
Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video Compression
H.264
Audio Compression
G711u
Resolution
Half 1080P(960×1080);720P(1280×720);960H(P:960×576/N:960×480)
Video Quality
worst/worse/ordinary/well/best
Record Rate
Analog: Half 1080P(960×1080 8*12fps),720P(1280×720 8*12fps), 960H(P:960×576 8*25fps/N:960×480 4*30fps) Pure IP: PAL :1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps NTSC:1080P@16x30fps, 960P@16x30fps, 720P@16x30fps, D1@16x30fps
Record Mode
ManualTimerMotion Detection
Playback & Backup
Decode Capability
4CH 1080P@30fps
Sync Playback
Pure Analog: 8CH 1080N@12fps Mixture mode:2CH 1080P@30fps+1CH 1080P@12fps Pure Network: 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
Remote Playback
4 Channel / 1Channel
Search Mode
ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions
Play, Pause, Stop, Fast play, Rewind
Smart Phone Playback
4 Channel
Backup Mode
USB Device/Network
Network
Interface
1 RJ45 10M/100M Adaptive Ethernet Interface
Network Functions
HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, NTP, FTP, UPNP
DDNS
Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES
Web Browser
IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)
CMS Software
Support Windows 7/ Windows 8/Windows 10
Extra Stream
CIF(1~12fps)
Smart Phone
iPhone, ipad, Android ,Android pad
Hard Disk Driver
Interface Type
1 SATA Interface
Capacity
1 SATA Hard Disk Interface (2.5″/3.5″ SATA, Up to 6TB)
General
Language
Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
UTC Control
YES
USB Interface
2 USB 2.0 Interfaces
Power consumption
DC 12V ≤6W (Without Hard Disk)
Working Environment
-10~55℃/10~90%
Dimension (W×D×H)
260*215*43(mm)

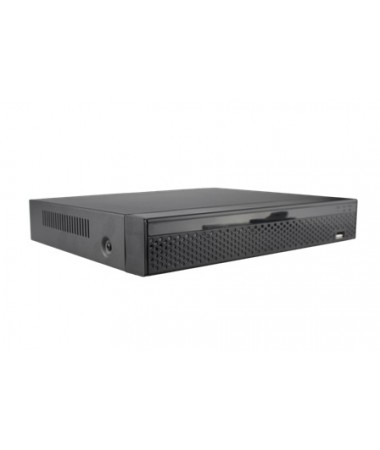

ANGA AQ-5908L5 H.264, 4in1 (Analog, AHD, TVI, IP) 8CH 1080N Real Time Record / 1CH Real Time Playback, Smartphone, 1xSATA MAX 6TB, ΔΙΚΤΥΑΚΟ, USB BACKUP, VGA, HDMI
