power supply: 220 VAC 50 Hz
maximum levels:
MIC input: 30 dB
LINE input: 21 dB
others: 22 dB
mixer rated outputs:
mains: ± 4 dB
max. output: 22 dB
frequency response:
MIC input to MAINS output:
+0, -1 dB, <10 Hz to 80 kHz
+0.3 dB
input impedance:
MIC: 2 kOhm
LINE : 10 kOhm
OUTPUTS: 100 Ohm
mono stereo channels EQ:
HIGH: 12 kHz
MID: 2.5 kHz
LOW: 80 Hz
dimensions: 345 x 275 x 60 mm
weight: 3.3 kg

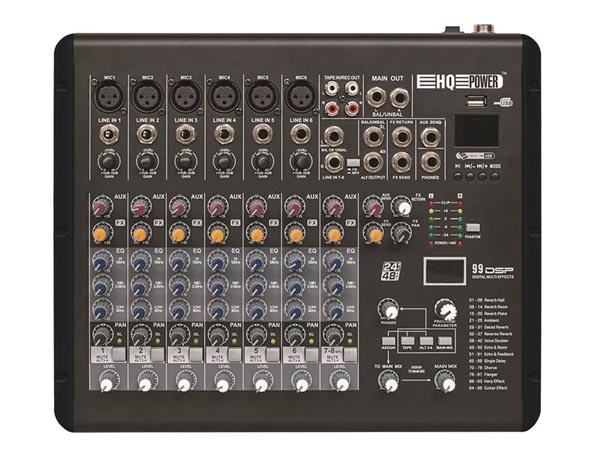

Get full-scale functions and quality audio with the compact HQ MX8 mixer.
This compact 8-input mixer offers a pair of microphone preamplifiers with switchable phantom power for your condenser microphones, and additional inputs for keyboards, drum machines, and other stereo gear. MP3 input is available on the last channel.
What makes the MX8 stand out from similar mixers are its 3-band equalizer and aux-send on each channel. For added convenience, the MX8 comes with an RCA I/O path for recording and separate volume controls for the main and headphone outputs.
The 99 DSP digital multi effects provide an extra dimension on this mixer.
8 mini multi channel and 1 stereo analog mixer with phanton power on the mic inputs
3 band active EQ (high, mid , low)
distortion under 0.0007% (20 Hz – 20 kHz)
phantom power for studio condenser mics
24 bit DSP processor (99 effects)
ALT 3/4 stereo bus for added versatility
precise 3 colour, 6 band LED level display
MP3 player is compatible with various audio formats
AC adaptor included
