HDMI Video Input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Audio format input: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Video Output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Audio format output: LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth: 165MHz
Max baud rate: 4.95Gbps
Input Video signal: 0.5~1.5Volts p-p
Output DDC signal 5Volts p-p (TT1L)
Input HDMI cable distance: ≤15m AWG26 HDMI standard cable
Max working current(Transmitter):1000mA
Max working current(Reciever): 700mA
Power adapter format(Transmitter/Receiver): Input:AC (50HZ, 60HZ) 100V-240V, Output: DC5V/2A
Operating Temperature range: (-15 to +55℃)
Operating Humidity range: 5 to 90%RH (No Condensation)
Dimension (Transmitter) 260X115X45 (mm)
Dimension (RX): (82X44X22) (mm) X4pcs

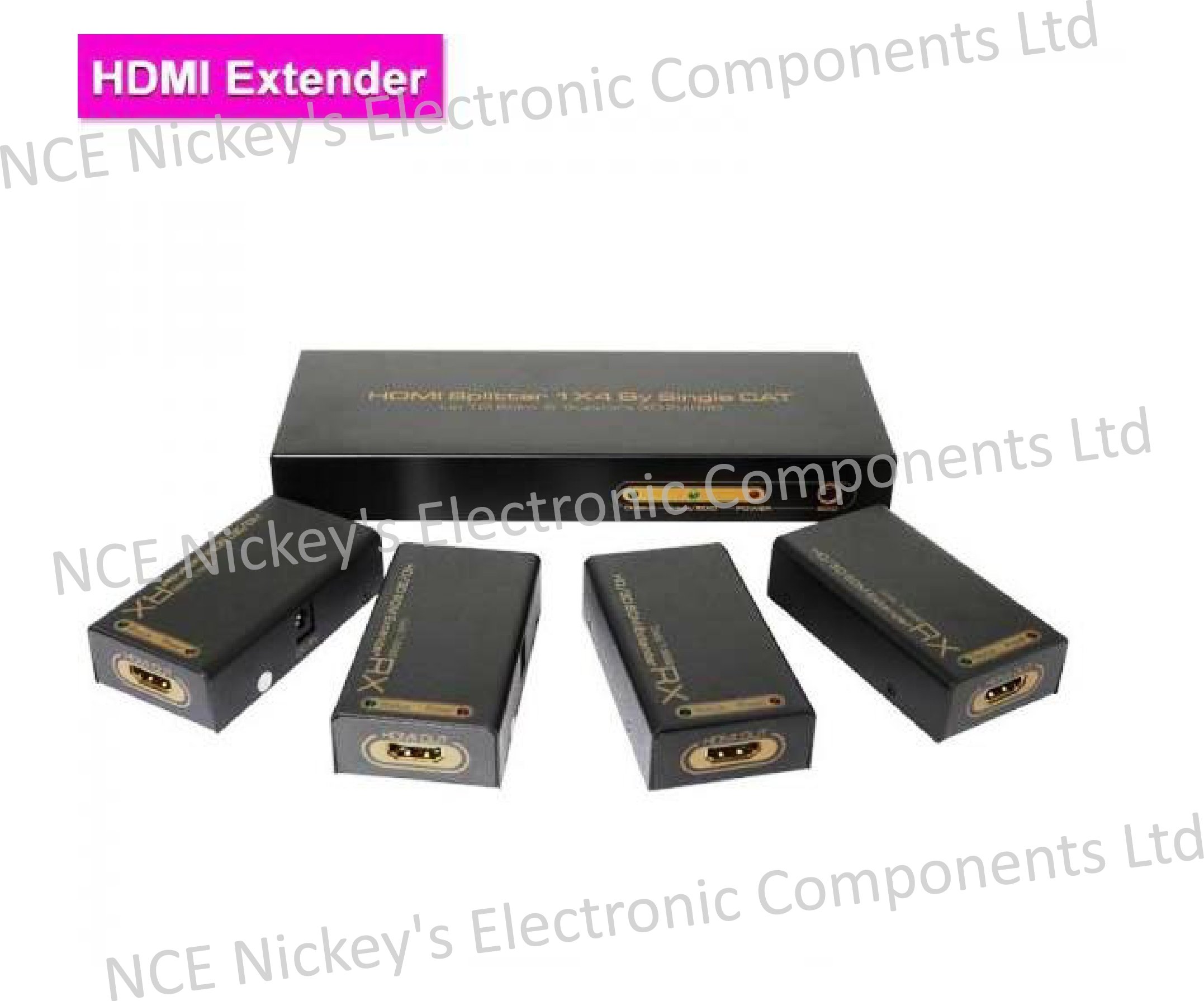

One HDMI input signal distributed and extended to four HD Displays by cat5e/6 cables up to 60m.
Support 3D
Support CEC
Support video output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
LED Status Light: When power connected, the related led light will go bright.
Use the standard AWG26 HDMI Cable and CAT5E/6 to make sure it can reach 60m (recommended shielded cables).
Support signal retiming
No loss of quality
