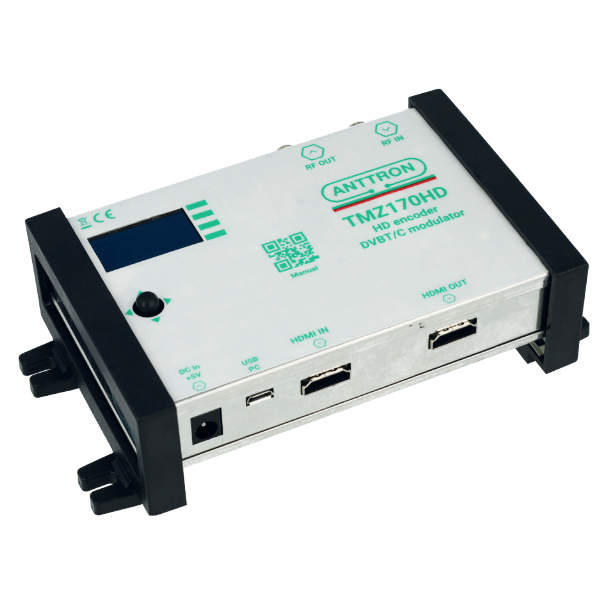

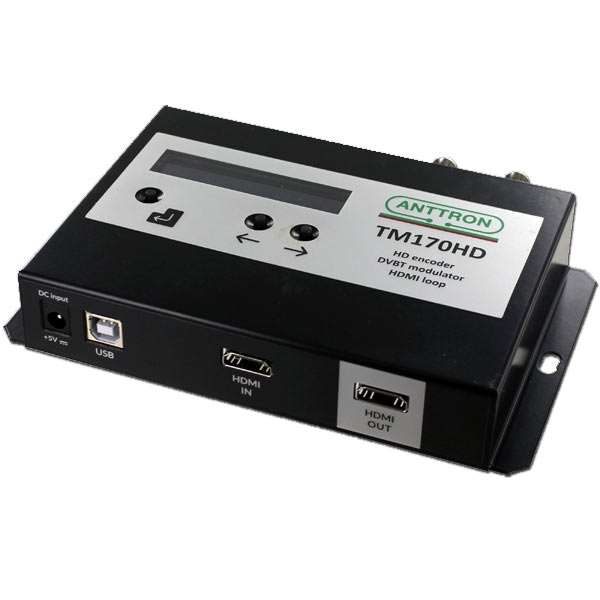

HD HDMI encoder, DVB-T/C modulator, HDMI loop

HD HDMI encoder, DVB-T/C modulator, HDMI loop
Video Input HDMI
Resolution modes 480p -576p -720p – 1080i – 1080P
Compression H.264 – bitrate 5-15 Mb/s
Audio Input HDMI
Sample Rate HDMI (32kHz / 44.1 kHz / 48 kHz)
Compression AAC-LC / MPEG1-L2– bitrate 128-384 Kb/s
DVB Processing
Table insertion PAT, PMT, SDT, NIT
Configuration Channel/network name, SID, LCN, TSID, ONID, NID, versions, audio, video PIDs…
DVB-T output
Output frequency / level 170-230 MHz + 470-862 MHz / > 85 dBμV
Constellation – FEC QPSK/16QAM/64QAM – 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval 1/4, 1/8, 1/16, 1/32
Mode – MER 2K/8K – 33 dB
Power DC 2.1 mm connector +5V
Consumption 6 Watts
Dimensions LxWxH 150x130x35mm
Weight 0.6 kg
