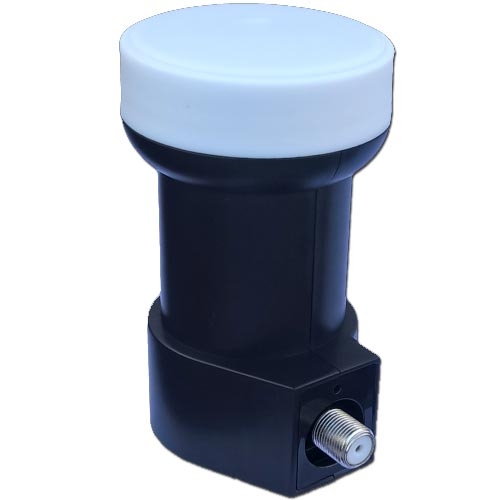

Input Frequency Range
Low band : 10.7 ~ 11.7 GHz
High band : 11.7 ~ 12.75 GHz
Output Frequency Range
Low band : 950 ~ 1950 MHz
High band : 1100 ~ 2150 MHz
LO Frequency
Low band: 9.75 GHz
High band : 10.60 GHz
LO Frequency Stability
+/-0,5 MHz (Max)@ room temperature
LO Frequency Phase Noise
-60 dBc/Hz @ 1KHz (Max.)
-80 dBc/Hz @ 10KHz (Max.)
-100 dBc/Hz @ 100KHz (Max.)
Noise Figure
0.1 dB (Typ.)
Conversion gain
58 ~ 63 dB
Gain Flatness 26 MHz Bandwith
+/-0.5dB (Typ.)
Polarity Switch Voltage
VERTICAL: 11.0 ~ 14.0 Vdc
HORIZONTAL: 16.0 ~ 20.0 Vdc
Band Switching
Low band: 0 kHz
High band: 22 kHz (+/- 4 kHz)
Control Signal Amplitude
0.6V
1dB Compression Point
0 dBm
VSWR
<2.0:1
Cross. Pol. Isolation
20 dB (Max.)
Image Rejection
40 dB (Min.)
Current Consumption
105 mA (Max.)
Output Connector Type
75 OHMS F-Female
Output Spurious
<-60dBm
Operating Temperature Range
-40°C ~ +65°C
Feed Diameter
36 mm
F/D ratio
0.6
