Frequency range: Up link GSM 890-915 / Downlink GSM 925-960
Gain(dB) GSM Up link: 55
GSM Downlink: 60
Gain adjustable range: MGC>=30dB
Output power(dBm): >=20
Pass band ripple GSM: 4dB
Guard band rejection: GSM(BW-60dB)=<42 MHz (BW-70dB)=<45 MHz
I/O impedance: 50/N Connector
I/O return loss: -10dB and below
Noise igure: -8dB and below
Intermodulation attenuation (Po=13dBm): 40dBc and above
Transmission delay: 0.5us and above
Ambient temperature: -10～50 degree celsius
Power supply: AC110～220V±10 percent, 45～55Hz

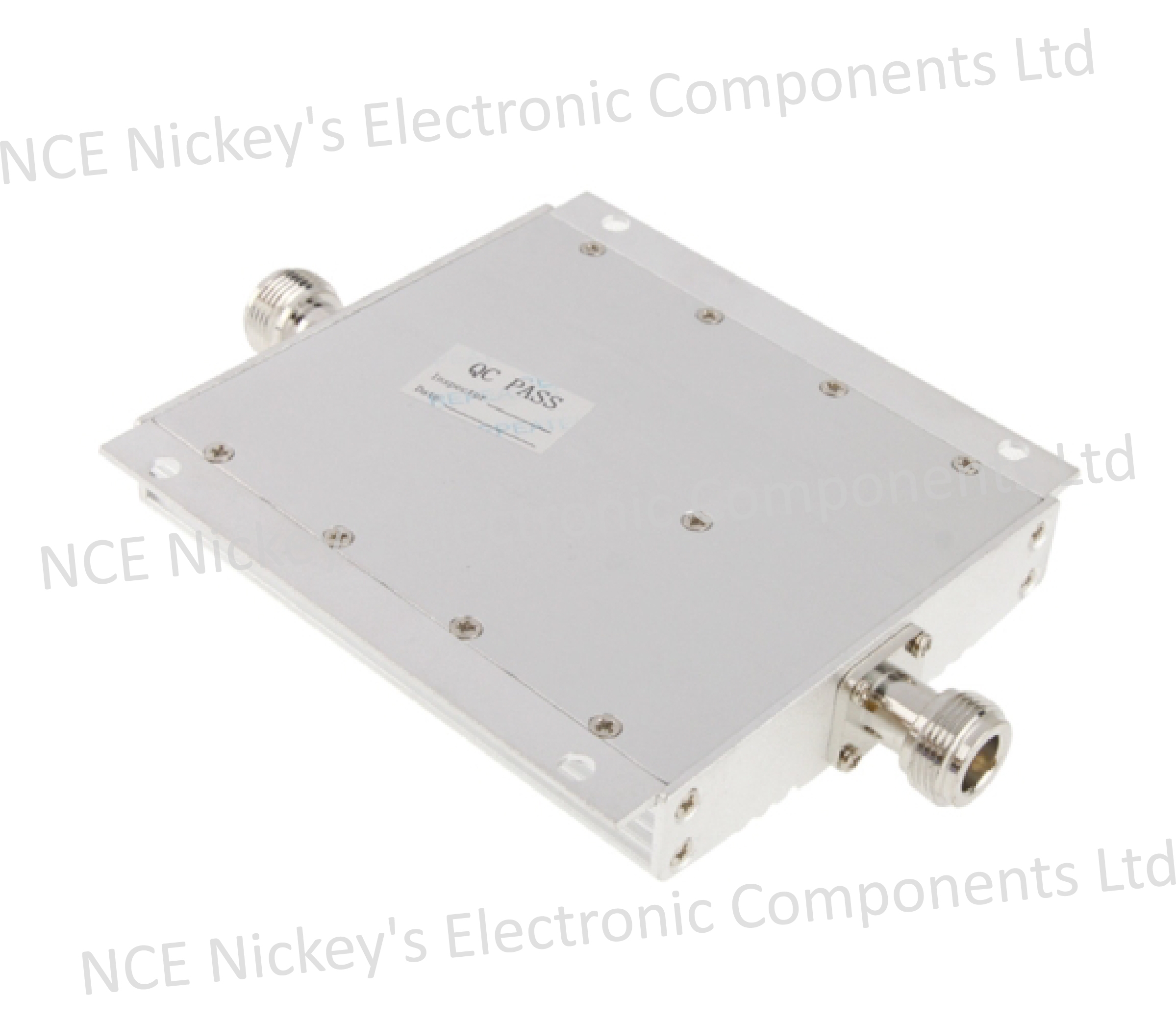

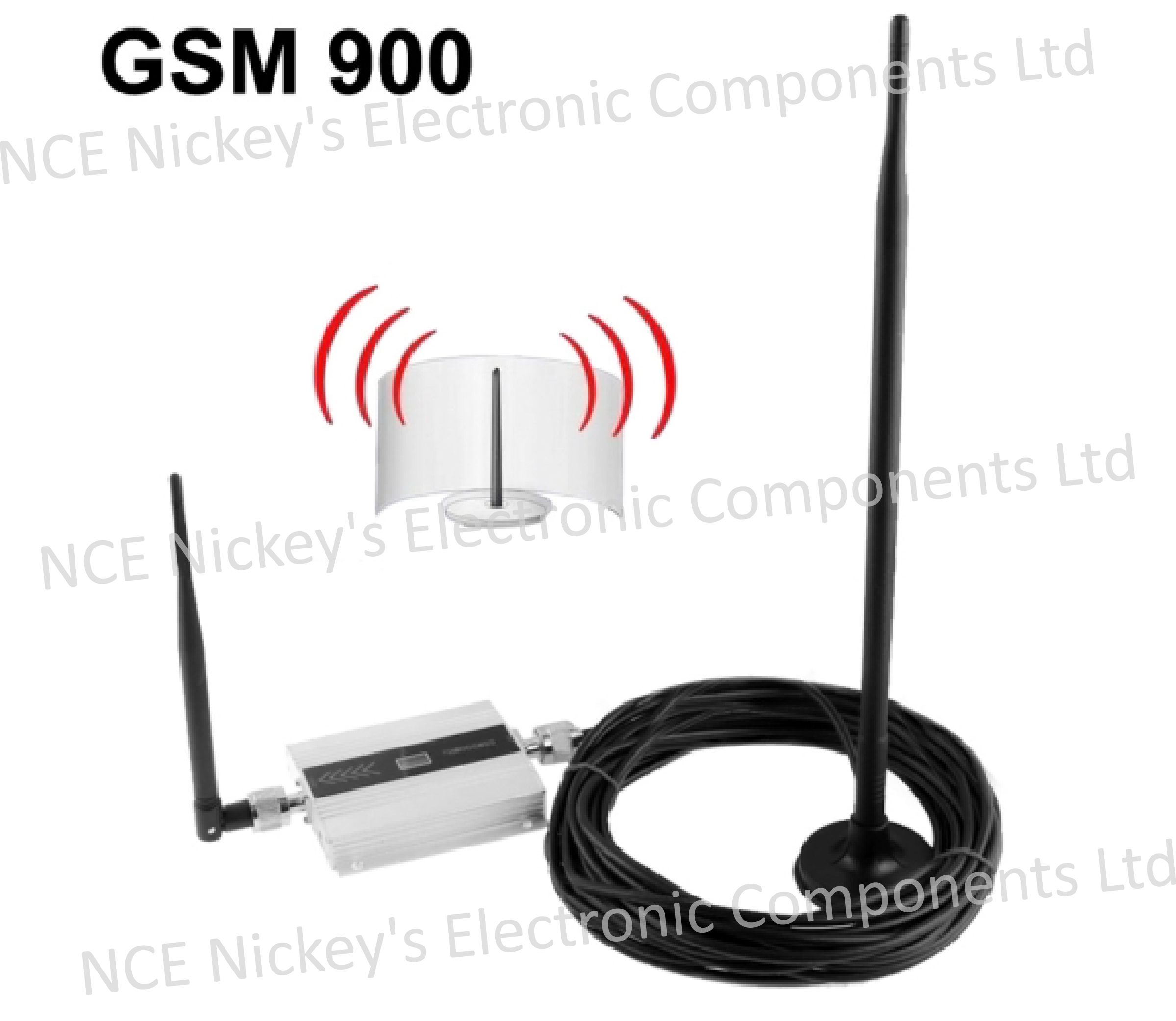

Package contains: 1 x 55dB GSM cellular phone signal amplifier, 1 x 9dB outdoor antenna, 1 x 3dB indoor antenna, 1 x 10m cable, Mounting accessories, 1 x AC power supply
Fully integrated 900 MHz antenna system
Powerful amplifier enables up to + 85 dB of signal gain including cable loss
Intelligent signal processing and real time adaptive operation
Automatically adjusts power levels as needed to ensure a consistent coverage footprint
Reprogrammable (in the field) enabling spectrum or carrier reconfigurations as needed
Auto-Track LED diagnostics displays aid install and operation
Patented algorithms and adaptive processing ensure our products will not interfere with other wireless frequencies or radio devices
