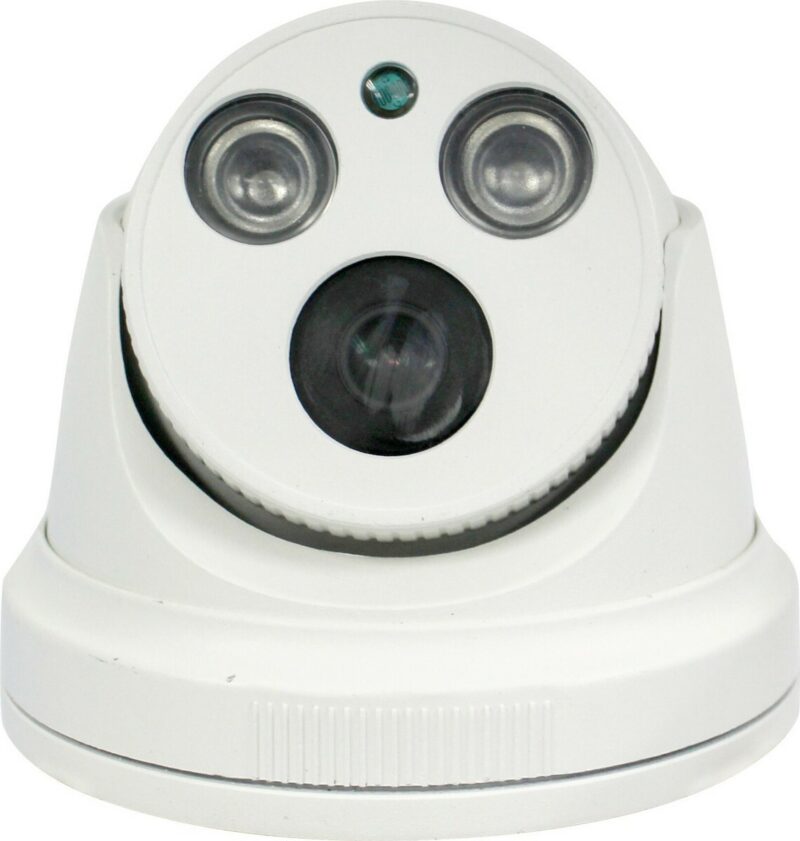

DOME Camera 5Mp 2 Array IR LED 1080P IP66

Parameter Value
Model: AQ-4509RD4
Camera:
Image Sensor: 1/2.7” 5MP Progressive Scan CMOS
Resolution: 2590*2048
Image System: PAL/NTSC
Light ON: 0.1 lux @ (F2.0, AGC ON)
Electronic shutter:
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Lens: 2.8mm
LEDs: 2 PCS Array LED
Cable: DIP switch
SNR: >52dB（AGC off）
Full color distance: 15m
Video Frame Rate: 5MP@20fps,5MP@12.5fps,
Video Output: TVI/AHD/CVI/CVBS
Menu: D&N
Support ICR EXT/Auto / Color/ BW
DNR
Support 2D NR
WDR
DWDR
White Balance: ATW / MWB
BLC
Support:
Image set:
contrast、sharpness、saturate、3DNR、2DNR、DWDR
Language: English, Chinese


























General:





Power Supply
12VDC ± 10 %;



Operating Conditions
(-20° C to 60° C), Humidity 90% or less (non-condensing)



Protection level
IP66



Dimensions
φ119mm*93mm



Shell Material
Metal



Power Consumption
Max. 3W
(Max.3W with IR cut filter on)
