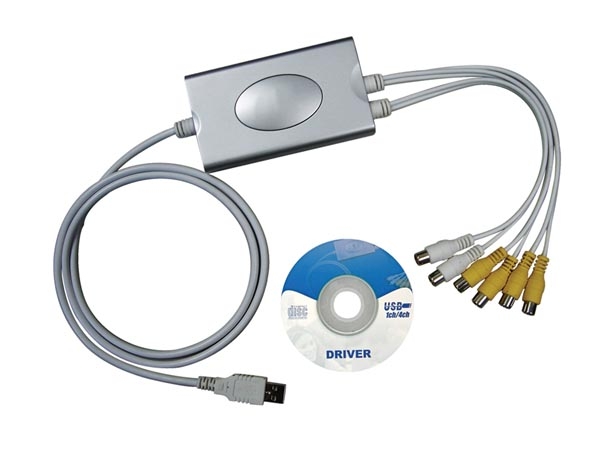

Digital 4-Channel USB, DVR + 2 Audio Chan.

VELLEMAN
Availability:

Only 2 left in stock


75,00 incl.VAT

Only 2 left in stock

input: RCA ll video input: 4 channels (RCA) 1.0Vpp / 75 ohms ll audio input: 2-channel PC audio ll video output: 1 channel VGA video output (USB 2.0) ll alarm input/output: 4 channel input / 1 channel output ll display rate: 25 fps (PAL), 30 fps (NTSC) ll recording rate: 25 fps (PAL), 30 fps (NTSC) ll compression format: MPEG4 triplex ll image display : each or quad ll video resolutions: ll PAL: 704 x 576 (D1), 352 x 288 (CIF) ll NTSC: 640 x 480 (D1), 320 x 240 (CIF) ll recorder mode: HDD, USB disk, ZIP, CD-R/W ll record mode: motion – sensor – schedule – manual ll network: TCP/IP ll I/O device: 4-channel hi/low input, 1-channel relay output ll PTZ: configurable protocol, remote control possible ll remote software: supports IE web browser

4-channel video input in one card, the maximum display/recording rate is 25 fps under PAL format and 30 fps under NTSC format ll 4 screen display modes are available ll multi-alarm triggering method: sensor, motion, video loss and HDD space shortage ll supports schedule recording mode, recycling recording method available ll MPEG4 video compression format, 5-level recording quality options available and recording frame rate range from 1 to 30 fps adjustable for each channel ll supports multichannel playback, searching by time/date and recording events, image zoom/capture/save/print/backup ll supports remote surveillance and PTZ control through web browser, supports dynamic domain name ll remote playback function ll configurable auto reboot function for preventing PC deadlock ll auto e-mail notification ll minimal system requirements: ll supported OS: Windows 2000 / Windows XP ll CPU: Intel Pentium III 800 ll RAM: 256MB ll HDD: 80GB ll VGA: nVidia GeForce II MX200 32M

SKU: DVR4USB Categories: ,

Barcode: 5410329375683
