- DC chassis socket
- Metal version with soldering lugs
- Pin 2.5 mm
- Model:DC099
- Metal Material:Metal
- Operating temperature range:-30-70 Degrees Celsius
- Rated load: DC 30V 5A
- Contact resistance :≤0.03Ω
- Insulation resistance:≥100MΩ
- Withstand voltage:AC 500V (50Hz) / min
- Insertion and extraction force:3-20

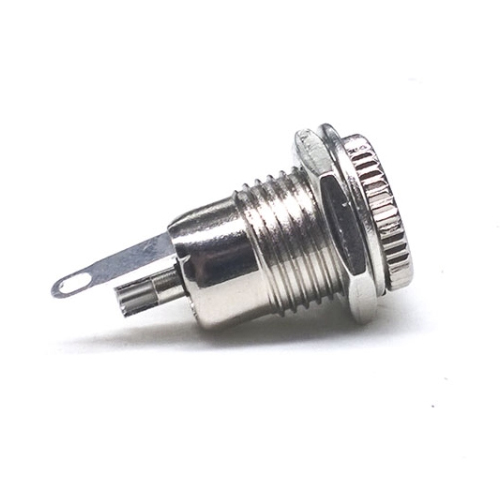

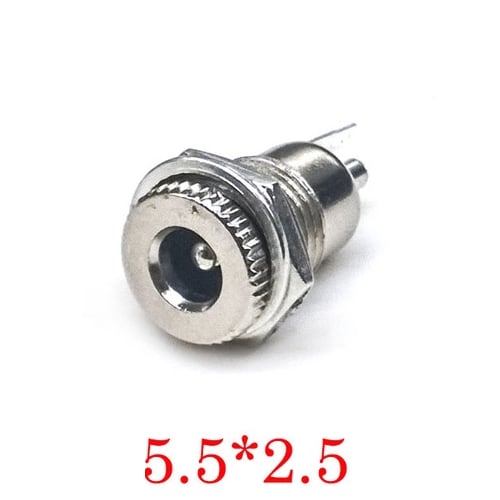

DC Power Jack Chassis Socket 5.5 x 2.5
€1,50 inc. VAT
DC chassis socket 5.5×2.5 Power Jack Socket Female Panel Mount Connector
In stock
Additional information
| Weight | 0,0500 kg |
|---|---|
| Dimensions | 0,0000 × 0,0000 × 0,0000 cm |
