- NETWORK SWTICH，EHTERNET SPLITTER. 5 x 10/100/1000Mbps RJ45 ports offer connectivity to your router or modem for additional wired connections (laptop, gaming console, printer, etc.).
- RELIABLE PERFORMANCE. Provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.
- EASY TO USE，PLUG AND PLAY. Simply set up without any software or configuration. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port detects the link speed of a network device (10/100/1000Mbps) and intelligently adjusts for compatibility and optimal performance.
- Cudy GREEN TECHNOLOGY, GS108 save power up to 68%, Automatically adjusts power consumption according to the link status and cable length. Fanless quiet design, Metal case design. Operating temperature: 0℃~40℃ (32℉~104℉)
- GOOD COMPATIABLITY. Compatible with Laptop, PC, Gaming Console, Printer, and any other devices with an Ethernet port. Supporting Auto-MDI/MDIX, Supports MAC address auto-learning and auto-aging.
Brand Name: Cudy
Color: 8-Port 10/100/1000Mbps Switch
Connectivity: Technology Ethernet
Ean: 0644925515067
Material: Metal
Model Number: GS108
Mounting Type: Tabletop
Number of Ports: 8
Operation Mode: ON-OFF-ON
Part Number: GS108
Size: 8-Port Gigabit
Special Features: Gigabit
Switch Type: Metal
UNSPSC Code: 43220000
UPC: 644925515067
Wattage: 4.50 watts

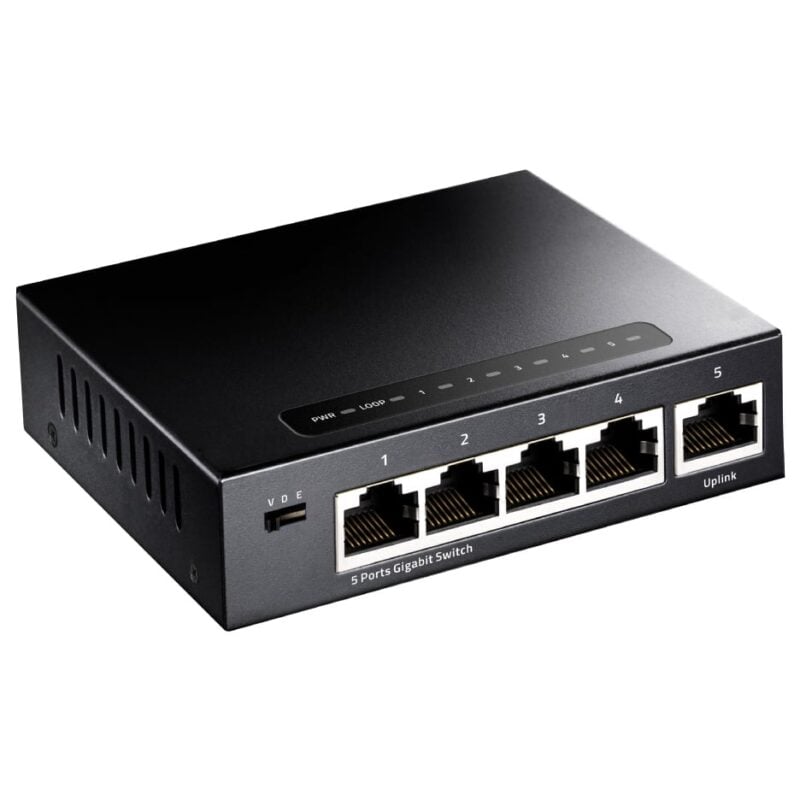

Model: GS105
Standard configuration: 5 10/100/1000M RJ-45 adaptive ports
Switching Capacity: 10Gbps
Throughput: 7.44Mpps
Packet Buffer: 1M
MAC Address: 1K
Jumbo Frame: 2K
Transfer Mode: Store and forward
MTBF: 100000 hour
Network protocol:
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)
Industry Standard:
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Network Medium:
10Base-T : Cat3,4,5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or aboveUTP(≤100m)
Working Environment:
Working Temperature：-10~50°C
Storage Temperature：-40~70°C
Working Humidity ：10%~90%，non-condensing
Storage Temperature：5%~90%，non-condensing
Working Height：Maximum10,000 feet
Storage heigh：Maximum 10,000 feet
LED Indicators:
PWR（Power indicator）、Link（Network Link）、LOOP（Loop alarm）
DIP Switch:
VLAN：Port Isolation, 1-4 ports are isolated each other, all communicate with uplink port 5;
Default：Default mode, Support loop alarm;
Extend：Monitor Mode, 1-4 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 7 and port 8 as uplink port
Structure Size:
Product Size：100*70*26mm
Package Size：175*120*63mm
Product Net-Weight：0.2kg
Product Gross-Weight：0.4kg
Packing Info:
MEAS：505*320*400mm
Packing Qty：40 unit
Packing weight：17KG

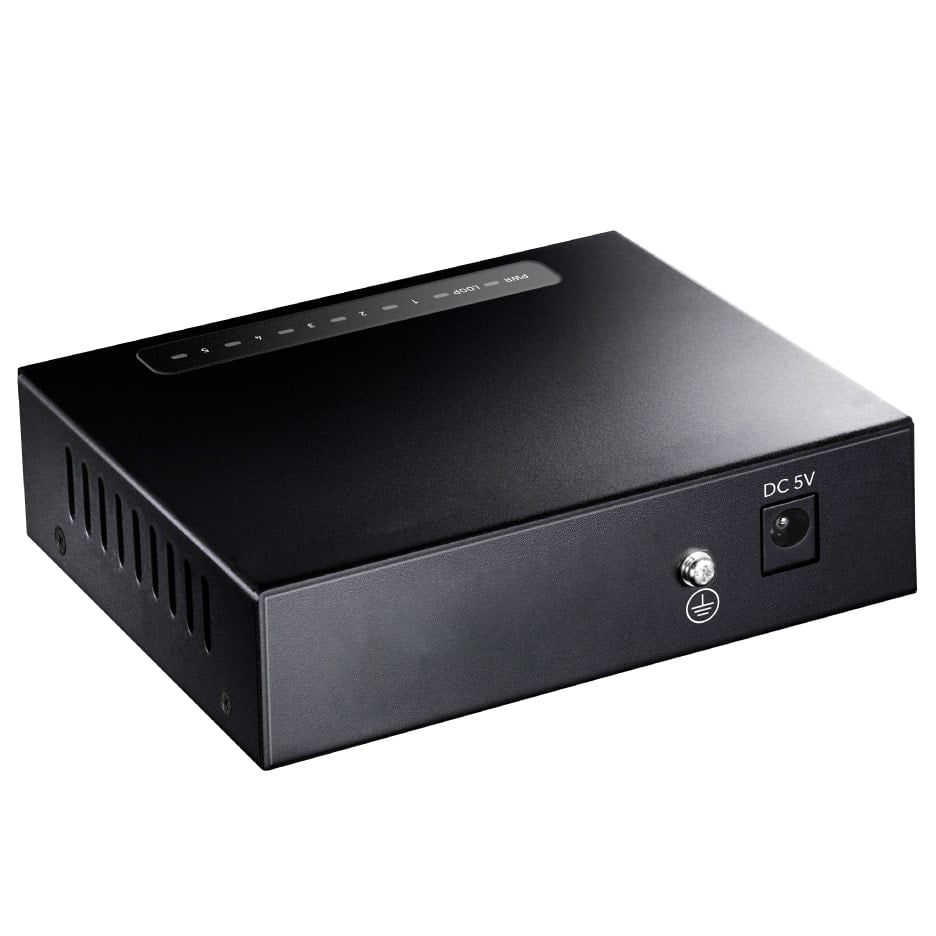

Power Voltage:
Power Input Voltage ：AC 100-240 V
Switch Input Voltage:：DC 5V
