Below Price is per meter
CU, AWG 23/1 (solid), LSZH
Technical specifications:
Cable length: 250 m (Price given: per meter)
Shielding class: S/FTP (PiMF)
Specification: CAT 7A
Cable type: Round cable
Inner conductor material: CU (copper)
Material cable sheath: LSZH
AWG: 23/1 (solid)
Number of shieldings: 2 x
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (copper) overall shield
LSZH compliant: Yes
Cable sheath diameter: (approx.) 7.5 mm
Signal transmission: Max. bandwidth 1000 MHz
Impedance: 100 Ω
Fire class (CPR): Dca
Color: Orange
Markings: DCA_CPR, CE, PoE
Suitable for applications: up to Class F(A) 1000 MHz Power over Ethernet (PoE/PoE+) analogue/digital signals, video, Voice over IP(VoIP) IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T Int. standard ISO/IEC 11801 2nd ed., IEC 61156-5 Euro. standard: EN 50173-1 EN 50288-9-1 FRNC/LSZH = Flame Reterdant Non Corrosive /Low Smoke Zero Halogen
- non-terminated data-/installationcable for proccessing and installation with LSA connection technology for indoor using

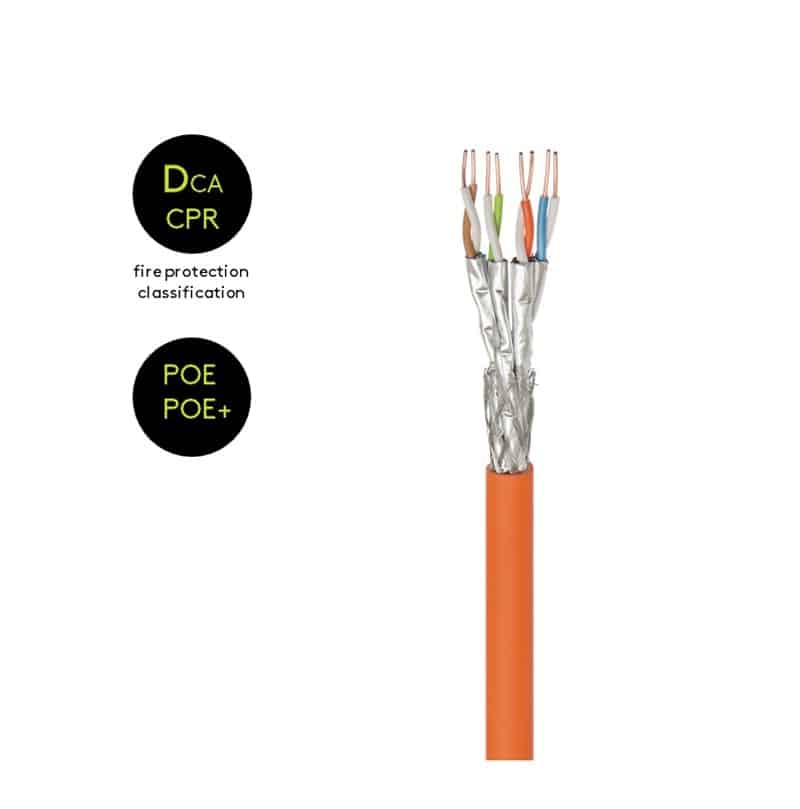

- double shielded twisted-pair LAN cable
- pairs screening: PIMF (pairs in metal foil) + outer shield: braiding
- Power over Ethernet (PoE/PoE+)
- suitable for Power over Ethernet (PoE/PoE+)
