Connection, shielding: yes
Connection, type: 24 RJ45 male (8P8C)
Device connections:
Output, type: RJ45 female (8P8C)
Number of outputs: 24 ports
Cable:
Shielding class: STP
Specification: CAT 6a
Signal transmission max. bandwidth: 500 MHz
Color: black
Markings: WEEE, CE
Width: 483 mm
Height: 44 mm
Depth: 107 mm

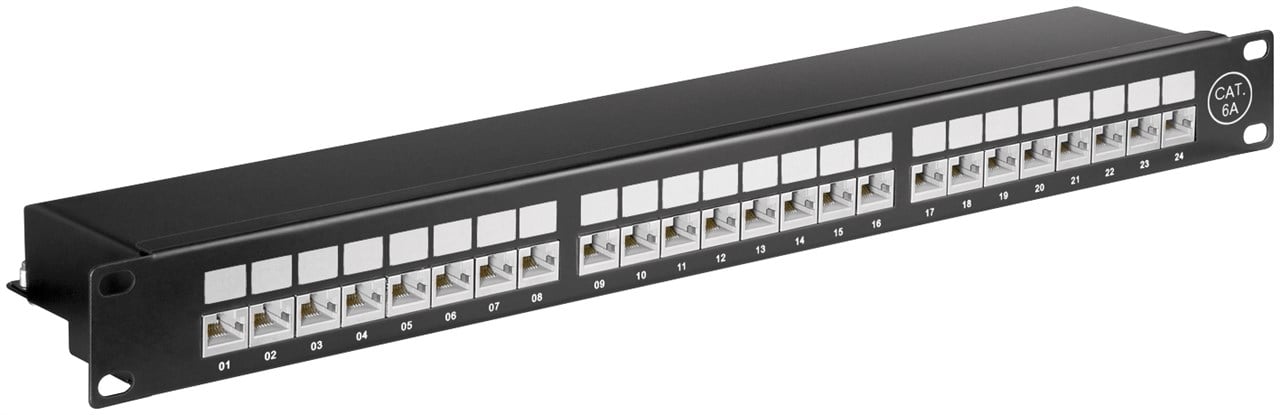

CAT 6a 19 inch (48.3 cm) Patch Panel, 24 Port
STP shielded
patch field (1 U) for assembly in 48.3 cm (19″) panel boxes
internal connection technology for LSA insulation displacement terminals
colour coding in accordance with TIA 568 A/B
for cable diameters of up to 0.64 mm (22–26 AWG), solid/stranded
‘Easy open’ housing without screws and tool
shielded ports
mounting screws included
