CHARACTERISTICS:
Supply voltage 195 ÷ 264
Power consumption 195-264, 21-19mA, 1. 5W
Operating temperature range 0 ÷ 50º C
Number of inputs 1
Number of outputs 2
Frequency range 40 ÷ 318 & 470 ÷ 790
Gain
• VHF 20 dB
• UHF 22 dB
Regulation VHF 15dB
Regulation UHF 15dB
Noise figure: VHF 7dB / UHF 5dB
Max. output level: dBμV 105
Input / output impedance Ω 75
Input / output connectors F (f)

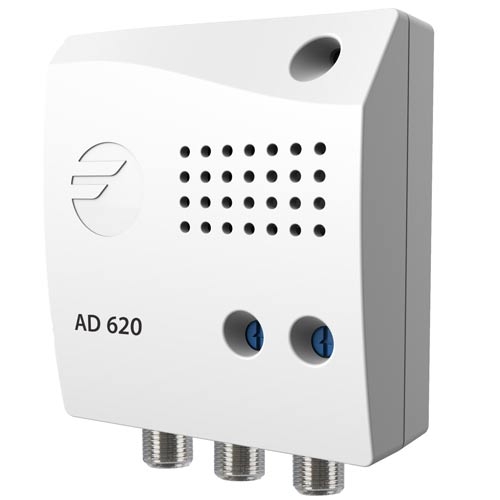

Indoor Amplifier 2 Outputs (105 dBµV)
Suitable for the distribution of TV/ M signals to one or more receivers away from the main socket.
FEATURES:
• Shielded RF circuit and VHF and UHF independent gain adjustment.
• Its small size minimizes visual impact
• 36440: AD 620 up to 790 MHz
