High-gain linear power amplifier
ALC and AGC function technology
Ultra-low noise receive amplifier
There is no interference to the base station, right after the opening of the original system and the base station without the need to adjust parameters
Stable and reliable electromagnetic compatibility design
The base station dose not cause an increase in background noise, but will not lead to a decline in the quality of the base station communications
With full-duplex communication mode
Gain:
Uplink 58-62dB, Downlink 58-62dB
Output Power:
Uplink 18-22dBm, Downlink 18-22dBm
Bandwidth:
60m
Ripple in Band:
< 5dB
Spurious Emission:
9KHz~1GHz (<-36dBm), 1GHz~12.75GHz (<-30dBm)
VSWR:
<3
MTBF:
>50000h

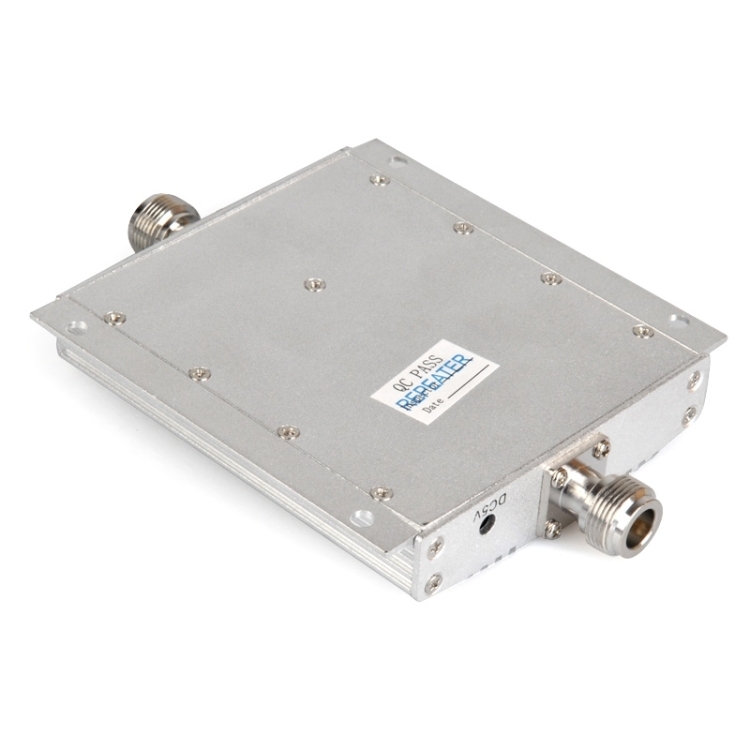

Power Supply:
AC: 100~240V, 50/ 60Hz; DC: 5V 1A
Power Consumption:
<5W
Impedance:
50ohm

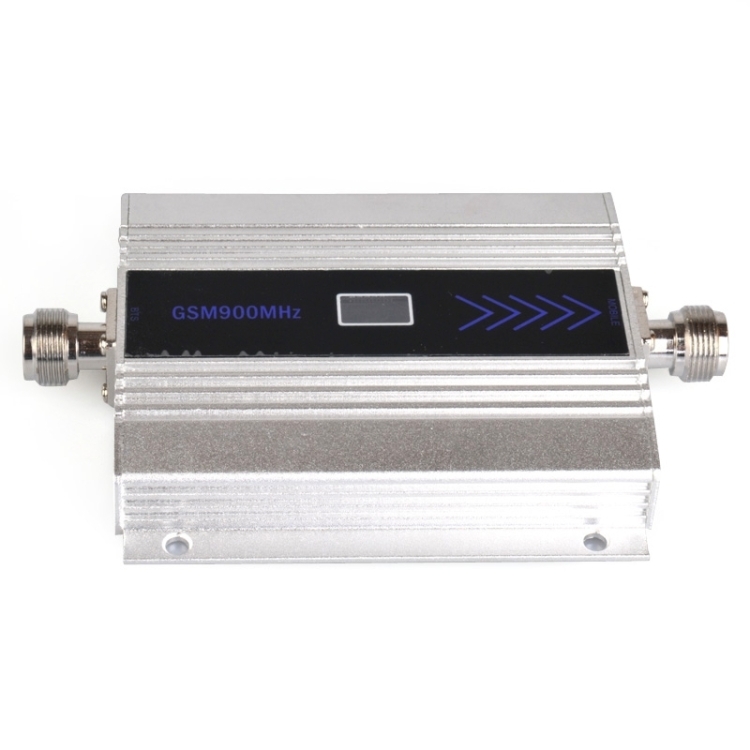

RF Connector:
N-Female N
Wall Installation
Environment Conditions:
IP40
Working Temperature:
-10C ~ 55C
Working Humidity:
< 90%
Size
140m x 98mm x 20mm
Weight
280g

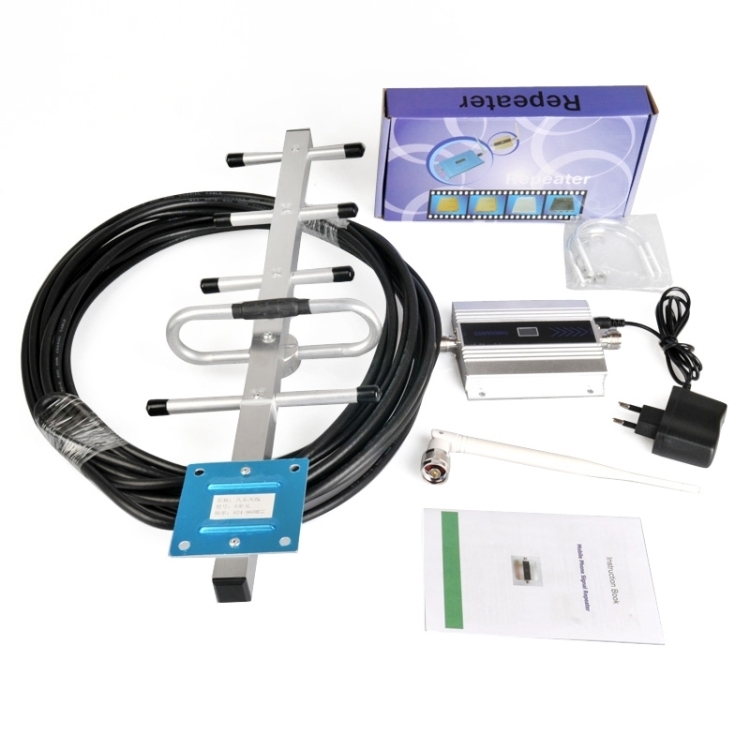

Package Contents:
1 x 12dB Outdoor Antenna
1 x 3dB Indoor Antenna
1 x 5m RG6-50 OHM Indoor Coaxial Cable
1 x Mounting Accessories Set
1 x AC Power Supply
1 x Manual

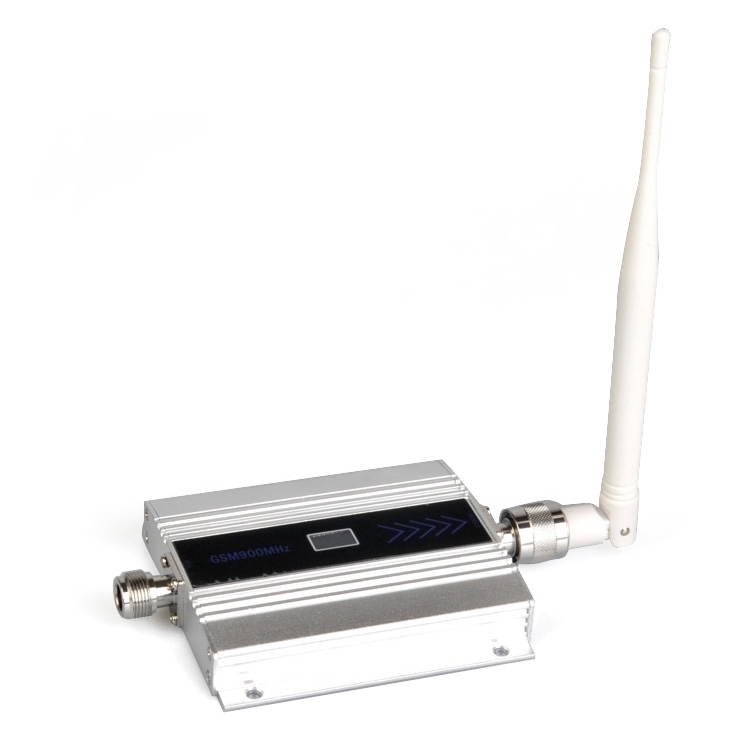

1 x Signal Booster
Frequency Range:
GSM 900MHz, Uplink 890-915MHz, Downlink 935-960MHz

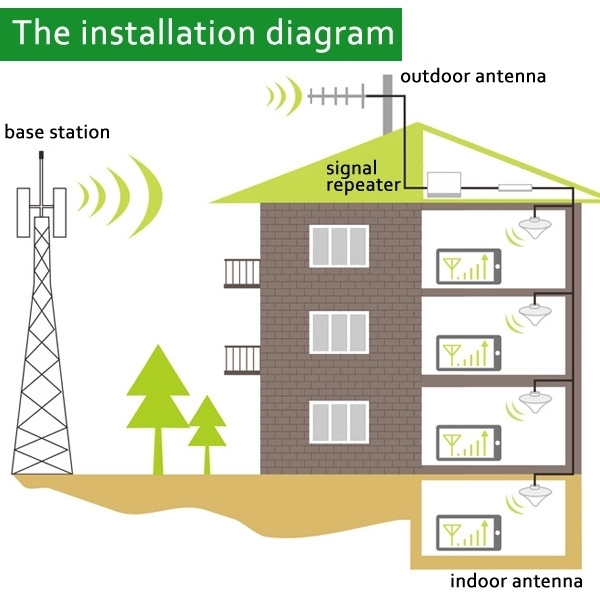

Install Repeater
1. Step 1: Use your mobile phone to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar)
2. Step 2 Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get best signal
3. Step3: Run outdoor coaxial cable into building in a convenient location to connect with signal repeater
4. Step 4: Mount your indoor antenna with signal repeater
5. Step 5: Power up signal repeater device to check the signal inside, moving outdoor antenna until you get satisfied signal
6. Note: Connect outdoor (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other at least
7. Indoor and outdoor antenna must be separated by wall
Working
1. The outside antenna gets the low signal from the mobile base station and delivers it to the cell phone amplifier through the connection cable (coax)
2. After the signal is received by the phone amplifier, the device amplifies it
3. Then this amplified signal goes through the connection cable (coax) to the inside antenna
4. And after that, the amplified signal transmits to the cell phone
Technical Support
1. If the signal receipt is still weak after installation, please check if outdoor antenna points to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2. If still get no signal after installation, please check our device power adapter whether connected correctly and make sure the connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Pack the outdoor connector with waterproof glue, otherwise the rain will reduce the signal cover area
