8-Port Fast Ethernet Desktop Switch In Plastic Casing

Out of stock

Out of stock

8-Port Fast Ethernet Desktop Switch In Plastic Casing
8-Port Fast Ethernet Desktop Switch In Plastic Casing
Out of stock




Device Interfaces:

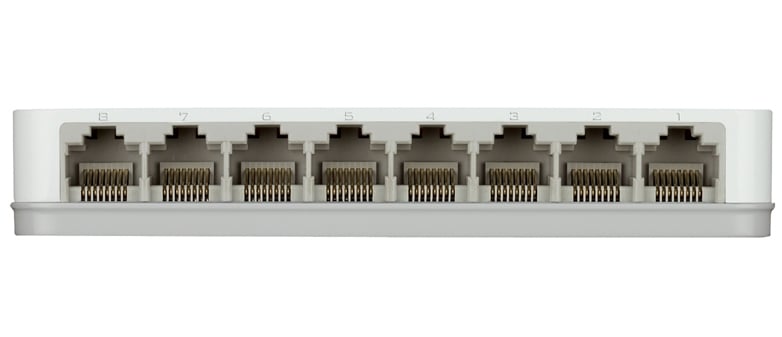

Eight 10/100 Fast Ethernet LAN ports



Advanced Features:

Green Ethernet / 1.6 Gbps switching fabric / Auto MDI/MDIX crossover for all ports / Secure store-and-forward switching scheme / Compliance with IEEE802.3az EEE power saving / Full/half-duplex for Ethernet/Fast Ethernet speeds / IEEE 802.3x Flow Control / Plug-and-play installation / RoHS compliant / Supports 2048-byte Jumbo Frames



Protocol:

CSMA/CD



Data Transfer Rates:

Ethernet: 10 Mbps (half duplex) , 20 Mbps (full duplex) / Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)



Transmission Method:

Store-and-forward



MAC Address Table:

2K



MAC Address Learning:

Automatic Update



Packet Filtering/Forwarding Rates:

Ethernet: 14,880 pps per port / Fast Ethernet: 148,800 pps per port



RAM Buffer:

96 KB per device



LED Indicators:

Per port: Link/Activity / Per device: Power



Media Interface Exchange:

Auto MDI/MDIX adjustment for all ports



Dimensions:

141.5 x 78.5 x 23.8 mm (5.57 x 3.09 x 0.94 inches)



Power:

5 V/0.55 A Power Adapter



Heat Dissipation:

Power On (Standby): AC input:2.0472 Btu/h / Maximum: AC input:7.47228 Btu/h



Power Consumption:

Power On (Standby): DC input: 0.36 watts, AC input: 0.6 watts / Maximum: DC input: 1.78 watts, AC input: 2.19 watts / Link Up: EEE mode: DC input: 0.75 watts AC input: 1.1. watts



Temperature:

Operating: 0 to 40 °C (32 to 104 °F) / Storage: -10 to 70 °C (14 to 158 °F)



Humidity:

Operating: 10% to 90% non-condensing / Storage: 5% to 90% non-condensing

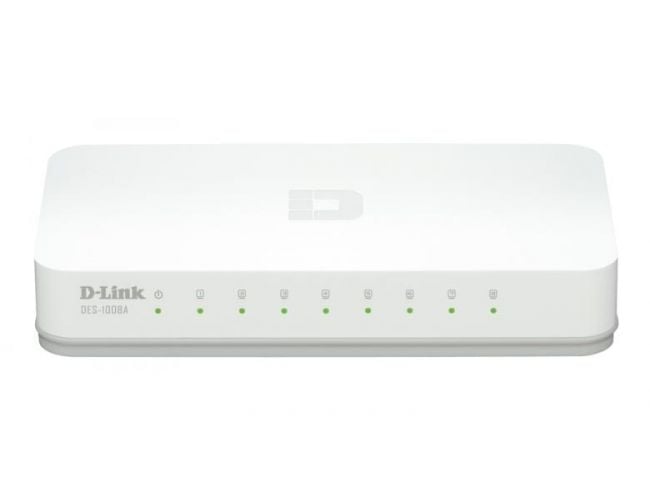

The DES-1008A 8-Port 10/100 Switch is is an 8-port 10/100 Mbps Fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-1008A to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.

-High-speed Wired Connection

-Plug and Play

-Compact Design


Unmanaged Switching Type

10/100Mbps Link Speed

8 Port Count

Additional information

Weight 0,3000 kg
Dimensions 0,0950 × 0,1600 × 0,1050 cm
