HDMI Version: HDMI 1.4b
HDMI resolution: 24/50/60fs/3840p/1080p/1080i/720p/576p/576i/480p/480i
Support video format: 8/10/12 bit deep color
Support audio format: DTS-HD/Dolby-trueHD//DTS/Dolby-AC3/DSD
Input cable distance: ≤15m AWG26 HDMI standard cable
Output cable distance: ≤25m AWG26 HDMI standard cable
HDMI Inputs: 4
HDMI Outputs: 2
Max working current: 550mA
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Operating Temperature range: (-15 to +55)
Operating Humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 200x70x25 (mm)

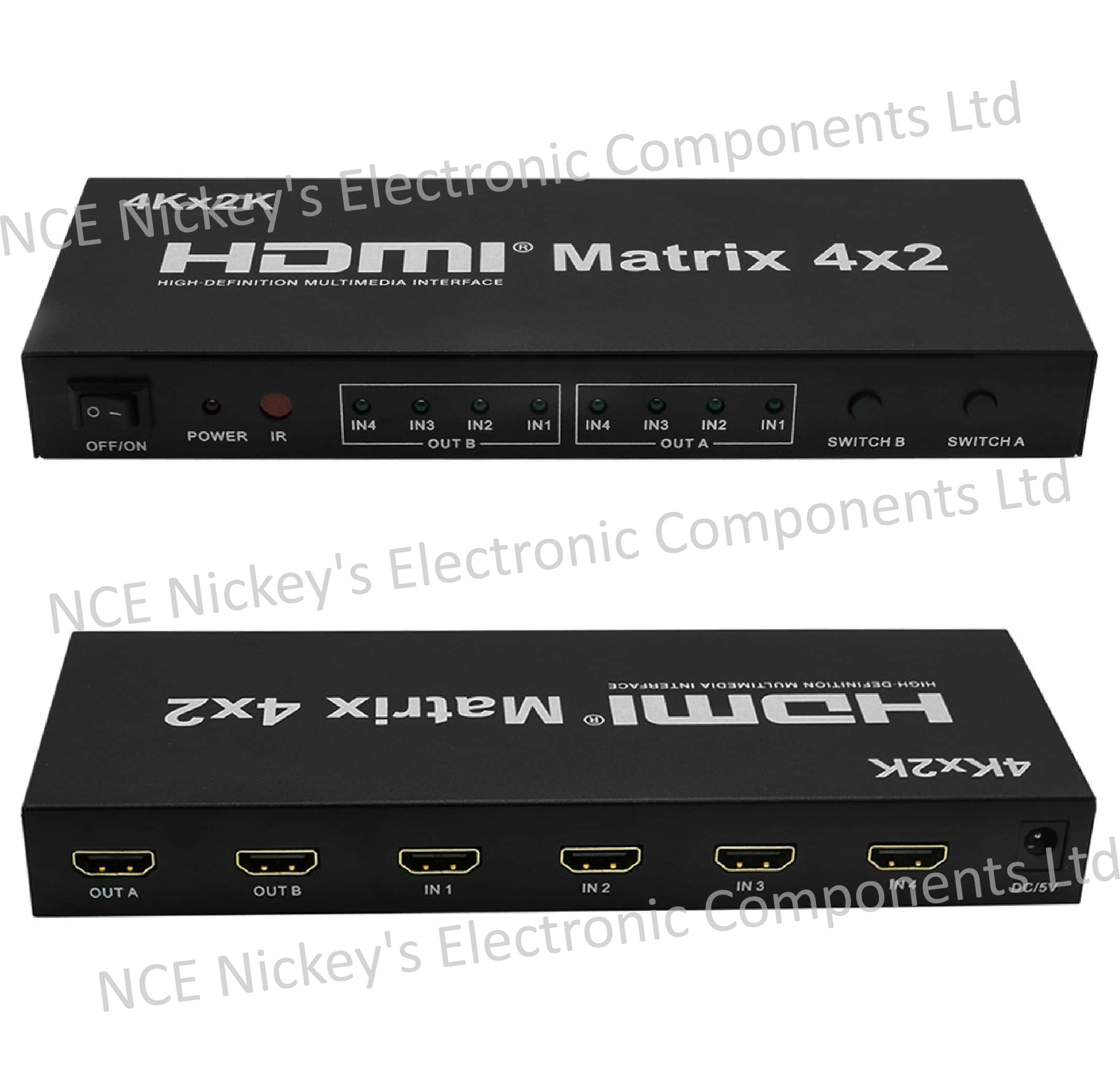

The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output port can realize independent audio output by optical fiber or stereo head phone.
Ideal for conference room presentation, school and corporate training environments.
Support HDMI 1.4b & 3D video format
Support highest resolution up to 3840*2160/30Hz & deep color 8/10/12 bit
Support input up to 15metres AWG26 HDMI standard cable length, output up to 25metres AWG26 cable length
Support 5.1 audio channel
Need DC5V/2A power supply
