Shielding class: Class A
Meter scaling: yes

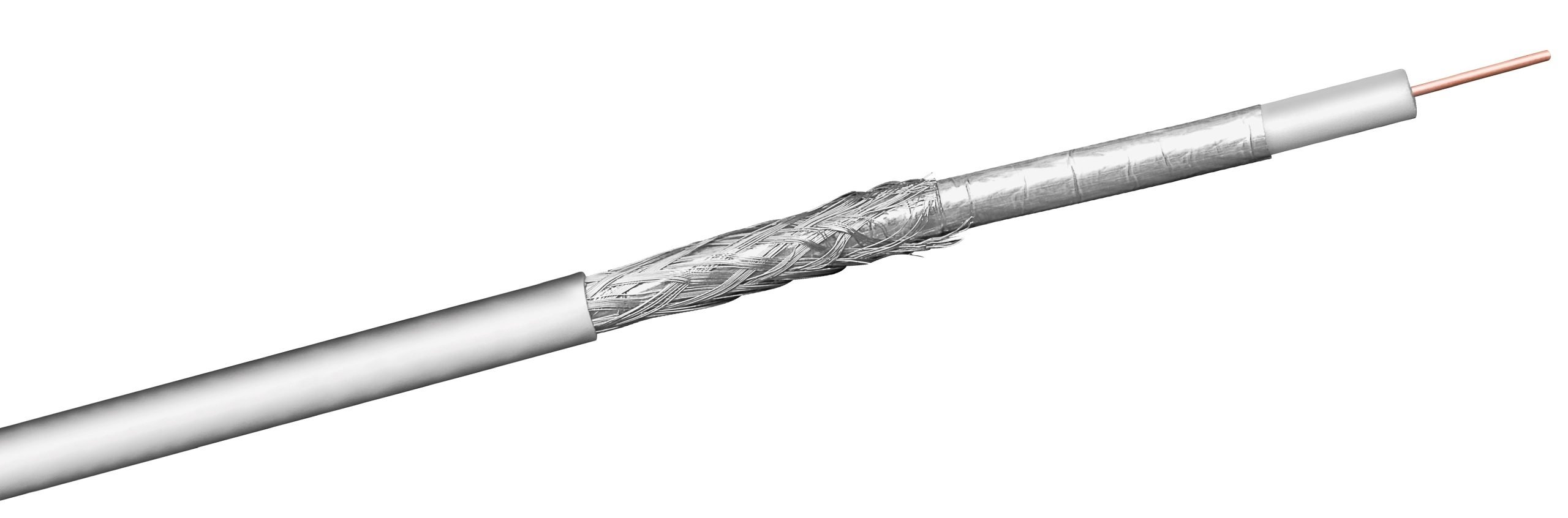

Cable type: coaxial cable
Inner conductor: material CU (copper)
Dielectric diameter: 4.8mm
Inner conductor, core diameter: 1.13mm
Cable sheath diameter: (approx.) 6.8 mm
Number of shieldings: 2 x
Type 1, shielding foil (aluminum)
Type 2, shielding braid (aluminum) 128x
Cable length: 100 m
Shielding efficiency: 100 dB
Impedance: 75 Ω
Outer sheath material: PVC
Color: white
Operating temperature: from -20 °C
Operating temperature: up to 75 °C
Weight: 4923 g
Tested and classified as Class A (as per EN 50117)
Digital-ready for HDTV using DVB-S/S2, DVB-T/T2, DVB-C/C2
Double signal shield for adequate protection over long distances
Inner conductor made of specially conductive and flexible copper
Meter scaling on the cable simplifies building installation
